Product Details

Description



Features:

High Isolation: 40 ~ 45 dB thru 6 GHz
Low Insertion Loss: 1.2 dB@ 6 GHz
Non-Refl ective Design
3 mm x 3 mm x 1 mm SMT Package


Application

The HMC427LP3 is ideal for:
• Test Instrumentation
• Fiber Optics & Broadband Telecom
• Basestation Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar, & ECM

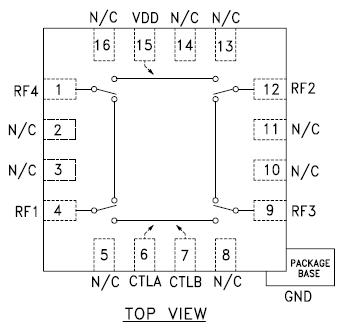

Pinout

Connection Diagram


Specifications

Bias Voltage Range (Vdd) +7.0 Vdc
Control Voltage Range (A & B) -0.5V to Vdd +1.0 Vdc
Channel Temperature 150 °C
Thermal Resistance 130 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C
Maximum Input Power +27 dBm



Description

The HMC427LP3 is a low loss broadband positive control transfer switch in a leadless surface mount package. Covering DC to 8 GHz, this switch offers high isolation and low insertion loss. The HMC427LP3 switch operates using a positive control voltage of 0/+5V and requires a fi xed bias of +5V @ < 20 A.
