Product Details

Description

Features:

Integrated LO Amplifi er w/ Pdiss <100 mW
Conversion Loss / Noise Figure: 8.0 dB
Low LO Drive: 0 dBm
Input IP3: +15 dBm
Single Positive Supply: 3V, 30 mA

Application

The HMC422MS8 is ideal for:
• MMDS & ISM
• Wireless Local Loop
• WirelessLAN
• Cellular Infrastructure

Pinout

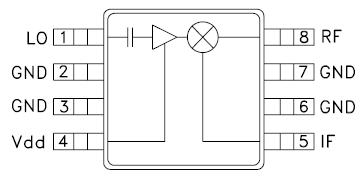

Connection Diagram

Specifications

RF / IF Input (Vdd = +3V)		+13 dBm
LO Drive (Vdd = +3V)		+13 dBm
Vdd		+7 Vdc
IF DC Current		±10 mA
Channel Temperature (Tc)		150 °C
Continuous Pdiss (T = 85°C) (Derate 5.8 mW/°C above 85 C)		0.38 W
Storage Temperature		-65 to +150 °C
Operating Temperature		-55 to +85 °C

Description

The HMC422MS8 is a double balanced mixer IC with an integrated LO amplifi er. This mixer can operate as an upconverter or downconverter between 1.2 GHz and 2.5 GHz. With the integrated LO amplifi er, the mixer requires an LO drive level of only 0 dBm, and requires only 30mA from a single positive +3V rail. The HMC422MS8 mixer has 8 dB of conversion loss, an input P1dB of +8 dBm and an input third order intercept point of +15 dBm at 2 GHz.
