HMC421QS16

Features:

·+19 dBm Input IP3
·Integrated IF & LO Amps: +10 dBm LO
·Conversion Gain: 9 dB
·Noise Figure: 9 dB
·Single Positive Supply: +5V, 60 mA


Application

The HMC421QS16 is ideal for:
• GSM, GPRS & EDGE Infrastructure
• CDMA, WCDMA Infrastructure
• PHS & PDC Infrastructure

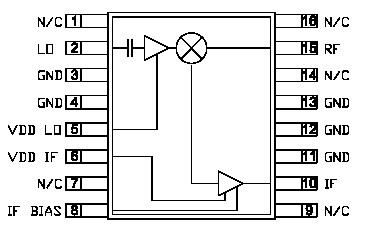

Pinout




Specifications

RF / IF Input (Vdd= +5V)	+13 dBm
LO Drive (Vdd= +5V)	+15 dBm
Vdd (LO or IF)	+7 Vdc
Channel Temperature	150
Continuous Pdiss (T = 85) (derate 6.34 mW/°C above 85)	0.41 W
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85 deg



Description

The HMC421QS16 is a high linearity down-converter receiver IC suitiable for PCS/UMTS infrastructure applications. The receiver IC is designed to support UMTS applications where a high third order intercept point (OIP3) is required. A passive mixer coupled with a high dynamic range IF ampli- fi er achieves an Input IP3 of +19 dBm. The converter provides a gain of 8 dB and 9 dB typical single side band noise. The HMC421QS16 IC operates from positive +5V rails and consumes 60 mA of current. The design requires no external Baluns. The mixer supports IF frequencies between 50 MHz and 300 MHz.
