HMC416LP4

Features:

Pout: +4.5 dBm
Phase Noise: -114 dBc/Hz @100 k Hz
No External Resonator Needed
Single Supply: 3V @ 37 mA
QFN Leadless SMT Package, 16 mm²


Application

Low noise MMIC VCO w/Buffer Amplifi er for:
• Wireless Infrastructure
• Industrial Controls
• Test Equipment
• Military

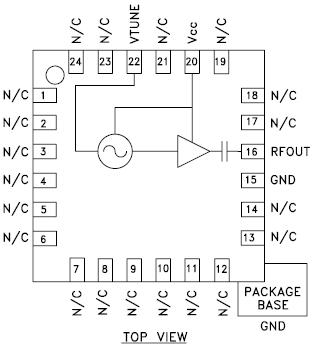

Pinout




Specifications

Vcc	+3.5 Vdc
Vtune	0 to +11V
Channel Temperature	135 °C
Continuous Pdiss (T = 85°C) (derate 6.28 mW/°C above 85°C)	180 mW
Thermal Resistance (RTH) (junction to package base)	277°C/w
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C

Description

The HMC416LP4 is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO with integrated resonator, negative resistance device, varactor diode, and buffer amplifi er. Covering 2.75 to 3.0 GHz, the VCO's phase noise performance is excellent over temperature, shock, vibration and process due to the oscillator's monolithic structure. Power output is 4.5 dBm typical from a single supply of 3V @ 37 mA. The HMC416LP4 voltage controlled oscillator is packaged in a low cost leadless QFN 4 x 4 mm surface mount package.
