Product Details

Description

Features:

Conversion Loss: 9.0 dB
LO/RF Isolation: 27 dB
LO/IF Isolation: 30 dB
Input IP3: +16 dBm
No External Components
MSOP8G SMT Package

Application

The HMC411MS8G is ideal for:
• Long Haul Radio Platforms
• Microwave Radio
• VSAT

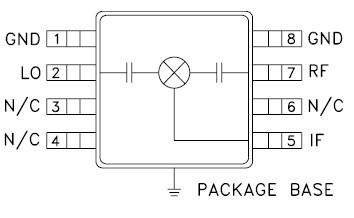

Pinout

Connection Diagram

Specifications

RF / IF Input	+15 dBm
LO Drive	+27 dBm
IF DC Current	±2 mA
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC411MS8G is a passive single balanced mixer that operates between 10 GHz and 15 GHz. The HMC411MS8G operates with LO drive levels between +9 dBm and +15 dBm, and provides 9 dB conversion loss across the entire specifi ed frequency band. This mixer requires no external components or bias.
