Product Details

Description

Features:

Conversion Loss: 8.0 dB
LO/RF Isolation: 40 dB
LO/IF Isolation: 37 dB
Input IP3: +24 dBm
No External Components
MSOP8G SMT Package

Application

The HMC410MS8G is ideal for:
• Long Haul Radio Platforms
• Microwave Radio
• VSAT

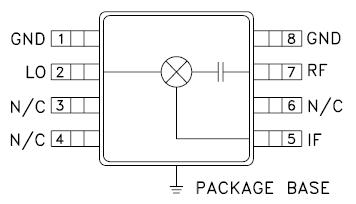

Pinout

Connection Diagram

Specifications

RF / IF Input	+20 dBm
LO Drive	+27 dBm
IF DC Current)	±4 mA
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC410MS8G is a passive double balanced high IP3 mixer that operates between 9 GHz and 15 GHz. The HMC410MS8G operates with LO drive levels between +13 dBm and +19 dBm, and provides 8 dB conversion loss across the entire specifi ed frequency band. This mixer requires no external components or bias.
