Features:

Gain: 17 dB
Saturated Power: +29 dBm
38% PAE
Supply Voltage: +5.0 V
Power Down Capability
Low External Part Count


Application

This amplifi er is ideal for use as a driver amplifi er for 5.0 - 6.0 GHz applications:
• UNII
• HiperLAN & 802.11a WLAN


Pinout

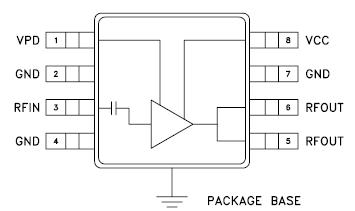

Connection Diagram


Specifications

Collector Bias Voltage (Vcc) +5.5 Vdc
Control Voltage (Vpd) +5.5 Vdc
RF Input Power (RFin)(Vs = Vctl = +5.0 Vdc) +20 dBm
Junction Temperature 150 °C
Continuous Pdiss (T = 85 °C)
(derate 32 mW/°C above 85 °C)		 2.1 W
Thermal Resistance
(junction to ground paddle)		 31 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC406MS8G is a high effi ciency GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC Power amplifi er which operates between 5.0 and 6.0 GHz. The HMC406MS8G amplifi er is packaged in a low cost, surface mount 8 leaded package with an exposed base for improved RF and thermal performance. With a minimum of external components, the amplifi er provides 17 dB of gain and +29 dBm of saturated power at 38% PAE from a +5.0V supply voltage. Vpd can be used for full power down or RF output power/current control.
