HMC279MS8G

Features: High Gain: 36 dBPsat Output Power: +14 dBmSingle Supply: +3V @ 60 mAUltra Small Package: MSOP8GNo External Matching RequiredApplicationThe HMC279MS8G is ideal for:• 2.6 - 2.7 GHz MMDS• 3.5 GHz Wireless Local Loop• 3.7 - 4.2 GHz Satellite(Receive and Transmit Bands)Pinou...

product image

HMC279MS8G Picture
See larger image
SeekIC No. : 004363814 Detail

HMC279MS8G: Features: High Gain: 36 dBPsat Output Power: +14 dBmSingle Supply: +3V @ 60 mAUltra Small Package: MSOP8GNo External Matching RequiredApplicationThe HMC279MS8G is ideal for:• 2.6 - 2.7 GHz MMD...

HMC279MS8G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC279MS8G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Gain: 36 dB
Psat Output Power: +14 dBm
Single Supply: +3V @ 60 mA
Ultra Small Package: MSOP8G
No External Matching Required


Application

The HMC279MS8G is ideal for:
• 2.6 - 2.7 GHz MMDS
• 3.5 GHz Wireless Local Loop
• 3.7 - 4.2 GHz Satellite
(Receive and Transmit Bands)

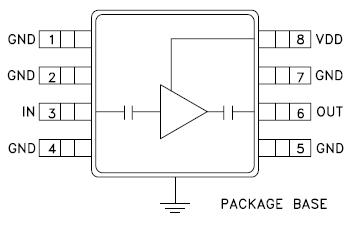

Pinout

Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +8.0 Vdc
RF Input Power (Vdd = + 3.0 Vdc) -10 dBm
Channel Temperature 150
Continuous Pdiss (T = 85 °C)
(derate 20 mW/°C above 85 °C)		 1.3 W
Thermal Resistance
(channel to ground paddle)		 50 /W
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC279MS8G is a +3V GaAs MMIC driver amplifi er covering the 2.5 - 4.2 GHz frequency range. The HMC279MS8G is packaged in a low cost, surface mount MSOP plastic package with an exposed base paddle for improved RF ground. The amplifi er provides greater than 36dB gain and +14 dBm P1dB while operating from a single +3V supply at only 60mA. No external components are required and the amplifi er occupies less than 0.023 sq. in. (14.6 sq. mm). All data is taken with the amplifi er assembled into a 50 ohm test fi xture with the exposed ground paddle connected to RF ground.
