HMC252QS24

Features:

Low Insertion Loss (2 GHz): 0.9 dB
Single Positive Supply: Vdd = +5V
Integrated 3:6 TTL Decoder
24 Lead QSOP Package


Application

The HMC252QS24 is ideal for:
• Base Station
• CATV / DBS
• MMDS & WirelessLAN
• Test Equipment

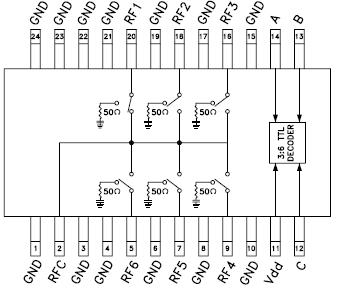

Pinout




Specifications

Bias Voltage Range (PortVdd)	+7.0 Vdc
Control Voltage Range (A, B, C)	-0.5V to Vdd +1 Vdc
Channel Temperature	150 °C
Thermal Resistance (Insertion Loss Path)	240 °C/W
Thermal Resistance (Terminated Path)	260 °C/W
Storage Temperature	-65 to +150
Operating Temperature	-55 to +85 d
Maximum Input Power Vdd = +5 Vdc	+20dBm (0.05-0.5GHz) +26dBm (0.5-3.0GHz)

Description

The HMC252QS24 is a low-cost non-refl ective SP6T switch in a 24-lead QSOP package featuring wideband operation from DC to 3.0 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC252QS24 SP6T replaces multiple confi gurations of SP4T and SPDT MMIC switches and logic drivers.
