HMC245QS16

Features: Low Insertion Loss: 0.5 dB @ 2.0 GHzNon-Refl ective DesignIntegrated 2:3 TTL Decoder All Off Isolation StateSingle Positive Suppy: Vdd = +5V16 Lead QSOP SMT PackageApplicationThe HMC245QS16 is ideal for:• Basestation Infrastructure• CATV / DBS• Wireless Local Loop̶...

product image

HMC245QS16 Picture
See larger image
SeekIC No. : 004363778 Detail

HMC245QS16: Features: Low Insertion Loss: 0.5 dB @ 2.0 GHzNon-Refl ective DesignIntegrated 2:3 TTL Decoder All Off Isolation StateSingle Positive Suppy: Vdd = +5V16 Lead QSOP SMT PackageApplicationThe HMC245QS...

HMC245QS16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC245QS16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Insertion Loss: 0.5 dB @ 2.0 GHz
Non-Refl ective Design
Integrated 2:3 TTL Decoder
"All Off" Isolation State
Single Positive Suppy: Vdd = +5V
16 Lead QSOP SMT Package


Application

The HMC245QS16 is ideal for:
• Basestation Infrastructure
• CATV / DBS
• Wireless Local Loop
• Test Equipment


Pinout

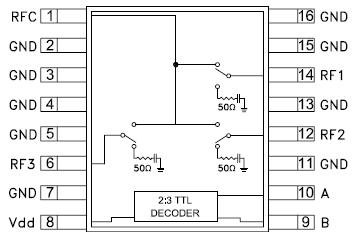

Connection Diagram


Specifications

Bias Voltage Range (Port Vdd) +7.0 Vdc
Control Voltage Range (A & B) -0.5V to Vdd +1 Vdc
Channel Temperature 150 °C
Thermal Resistance
(Insertion Loss Path)		 210 °C/W
Thermal Resistance
(Terminated Path)		 250 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C
Operating Temperature +20 dBm (0.05 - 0.5 GHz)
+27 dBm (0.5 - 3.5 GHz)



Description

The HMC245QS16 is a low cost non-refl ective SP3T switch in a 16-lead QSOP surface mount package. Covering DC to 3.5 GHz, the switch offers 30 to 40 dB isolation and a low insertion loss of 0.5 dB. A 2:3 TTL/ CMOS compatible decoder is integrated on the switch requiring only 2 control lines and a single +5V bias to select each path, replacing 6 control lines normally required by GaAs SP3T switches.
