HMC239S8

Features: Low Insertion Loss: 0.4 dBHigh Isolation: 35 dBFast Switching Speed: 2nsHigh Input IP3: +50 dBmApplicationThe HMC239S8 is ideal for:• MMDS & WirelessLAN• Basestation Infrastructure• Portable WirelessPinoutSpecifications Max. Input Power ...

product image

HMC239S8 Picture
See larger image
SeekIC No. : 004363773 Detail

HMC239S8: Features: Low Insertion Loss: 0.4 dBHigh Isolation: 35 dBFast Switching Speed: 2nsHigh Input IP3: +50 dBmApplicationThe HMC239S8 is ideal for:• MMDS & WirelessLAN• Basestation Infras...

HMC239S8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC239S8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Insertion Loss: 0.4 dB
High Isolation: 35 dB
Fast Switching Speed: 2ns
High Input IP3: +50 dBm


Application

The HMC239S8 is ideal for:
• MMDS & WirelessLAN
• Basestation Infrastructure
• Portable Wireless

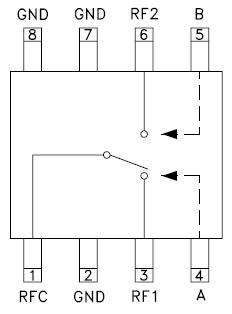

Pinout

Connection Diagram


Specifications

Max. Input Power
(VCTL = 0/-8V)		 0.05 GHz
0.5 - 2 GHz		 +27 dBm
+34 dBm
Control Voltage Range (A & B) +2 to -12 Vdc
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC239S8 is a low-cost GaAs MMIC SPDT switch in an 8-lead SOIC package. The switch can control signals from DC to 2.5 GHz. HMC239S8 is especially suited for low or medium power applications which require extremely fast switching with minimal insertion loss. The two control voltages require a minimal amount of DC current which is optimal for battery powered radio systems. RF1 and RF2 are refl ective shorts when "Off".
