Product Details

Description

Features:

Isolation: 52 dB @ 2.0 GHz
40 dB @ 6.0 GHz
Insertion Loss: 1.6 dB Typical @ 6.0 GHz
Non-Refl ective Design
Surface Mount Ceramic Package

Application

The HMC234C8 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Test Instrumentation

Pinout

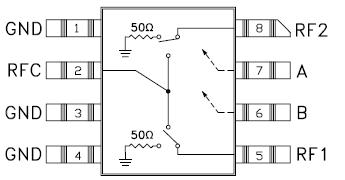

Connection Diagram

Specifications

RF Input Power (Vctl= -5V) (0.5 - 8 GHz)		+30 dBm (@ +50 °C)
Control Voltage Range (A & B)		+1.0V to -7.5 Vdc
Channel Temperature		150°C
Thermal Resistance		94 °C/W
Storage Temperature		-65 to +150 °C
Operating Temperature		-40 to +85 °C

Description

The HMC234C8 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a non-hermetic surface mount ceramic package. Covering DC to 8.0 GHz, the switch features >52 dB isolation up to 2 GHz and >38 dB isolation up to 8.0 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. This HMC234C8 is an excellent pin-for-pin replacement to the SMDI SSW124.
