HMC233G8

Features: Isolation: 44 dB @ 2.0 GHz 31 dB @ 6.0 GHzInsertion Loss: 1.5 dB Typical @ 4.0 GHzNon-Refl ective DesignHermetic Surface Mount PackageApplicationThe HMC233G8 is ideal for:• Telecom Infrastructure• Microwave Radio & VSAT• Military Radios, Radar & ECM• Space...

product image

HMC233G8 Picture
See larger image
SeekIC No. : 004363770 Detail

HMC233G8: Features: Isolation: 44 dB @ 2.0 GHz 31 dB @ 6.0 GHzInsertion Loss: 1.5 dB Typical @ 4.0 GHzNon-Refl ective DesignHermetic Surface Mount PackageApplicationThe HMC233G8 is ideal for:• Telecom I...

HMC233G8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC233G8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Isolation: 44 dB @ 2.0 GHz
               31 dB @ 6.0 GHz
Insertion Loss: 1.5 dB Typical @ 4.0 GHz
Non-Refl ective Design
Hermetic Surface Mount Package


Application

The HMC233G8 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Space Systems
• Test Instrumentation


Pinout

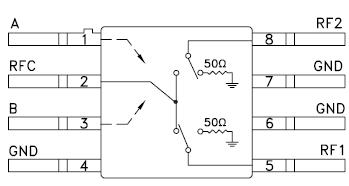

Connection Diagram


Specifications

RF Input Power (Vctl= -5V)
(0.5 - 6 GHz)		 +30 dBm (@ +85 °C)
Control Voltage Range (A & B) +1.0V to -7.5 Vdc
Hot Switch Power Level +27 dBm
Channel Temperature 150
Continuous Pdiss (T = 85 °C)
(derate 4 mW/°C above 85 °C)		 0.25 W
Thermal Resistance
(Insertion Loss Path)		 148 °C/W
Thermal Resistance
(Terminated Path)		 260 °C/W
Storage Temperature -65 to +150
Operating Temperature -55 to +85



Description

The HMC233G8 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a hermetic surface mount package. Covering DC to 6.0 GHz, the switch features >44 dB isolation up to 2 GHz and >31 dB isolation up to 6.0 GHz. The HMC233G8 switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply.
