HMC232LP4

Features: Isolation: 60 dB @ 3 GHz 52 dB @ 6 GHz+27 dBm Input P1dBInsertion Loss: 1.5 dB Typical @ 6 GHzNon-Refl ective Design4 x 4 x 1 mm QFN SMT PackageApplicationThe HMC232LP4 is ideal for:• Telecom Infrastructure• Microwave Radio & VSAT• Military Radios, Radar & ECM&#...

product image

HMC232LP4 Picture
See larger image
SeekIC No. : 004363769 Detail

HMC232LP4: Features: Isolation: 60 dB @ 3 GHz 52 dB @ 6 GHz+27 dBm Input P1dBInsertion Loss: 1.5 dB Typical @ 6 GHzNon-Refl ective Design4 x 4 x 1 mm QFN SMT PackageApplicationThe HMC232LP4 is ideal for:•...

HMC232LP4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC232LP4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Isolation: 60 dB @ 3 GHz
               52 dB @ 6 GHz
+27 dBm Input P1dB
Insertion Loss: 1.5 dB Typical @ 6 GHz
Non-Refl ective Design
4 x 4 x 1 mm QFN SMT Package


Application

The HMC232LP4 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Test Instrumentation


Pinout

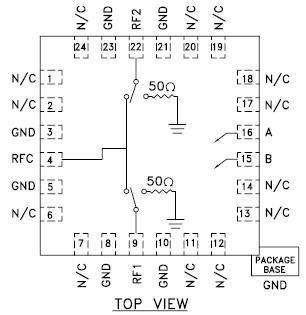

Connection Diagram


Specifications

RF Input Power (Vctl= -5V)
(0.5 - 12 GHz)		 +30 dBm (@ +50 °C)
Control Voltage Range (A & B) +1.0V to -7.5 Vdc
Channel Temperature 150°C
Thermal Resistance (RTH)
(junction to lead)		 94 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC232LP4 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a low cost leadless QFN surface mount plastic package. Covering DC to 12 GHz, the switch features >60 dB isolation up to 3 GHz and >42 dB isolation up to 12 GHz. Input P1dB compression is +27 dBm typical, while input IP3 is +50 dBm. The HMC232LP4 switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply.
