HMC232C8

Features: Isolation: 55 dB @ 2.0 GHz 43 dB @ 6.0 GHzInsertion Loss: 1.6 dB Typical @ 6.0 GHzNon-Refl ective DesignSurface Mount Ceramic PackageDirect Replacement for HMC132C8ApplicationThe HMC232C8 is ideal for:• Telecom Infrastructure• Microwave Radio & VSAT• Military Radios...

product image

HMC232C8 Picture
See larger image
SeekIC No. : 004363766 Detail

HMC232C8: Features: Isolation: 55 dB @ 2.0 GHz 43 dB @ 6.0 GHzInsertion Loss: 1.6 dB Typical @ 6.0 GHzNon-Refl ective DesignSurface Mount Ceramic PackageDirect Replacement for HMC132C8ApplicationThe HMC232C8 ...

HMC232C8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC232C8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Isolation: 55 dB @ 2.0 GHz
               43 dB @ 6.0 GHz
Insertion Loss: 1.6 dB Typical @ 6.0 GHz
Non-Refl ective Design
Surface Mount Ceramic Package
Direct Replacement for HMC132C8


Application

The HMC232C8 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Test Instrumentation

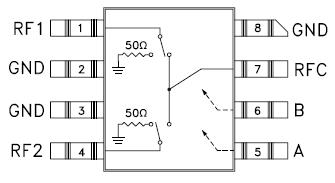

Pinout

Connection Diagram


Specifications

RF Input Power (Vctl= -5V)
(0.5 - 8 GHz)		 +30 dBm (@ +50 °C)
Control Voltage Range (A & B) +1.0V to -7.5 Vdc
Channel Temperature 150°C
Thermal Resistance 94 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC232C8 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a non-hermetic surface mount ceramic package. Covering DC to 8.0 GHz, the switch features >55 dB isolation up to 2 GHz and >42 dB isolation up to 8.0 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. HMC232C8 is a form, fi t & functional replacement for the HMC132C8.
