Product Details

Description

Features:

IP3 (Input): +25 dBm @ +11 dBm LO
LO Range = +3 to +11 dBm
Conversion Loss: 8.5 dB
LO / RF Isolation: 32 dB

Application

The HMC216MS8 is ideal for:
• Base Stations
• WirelessLAN
• PCMCIA
• Portable Wireless

Pinout

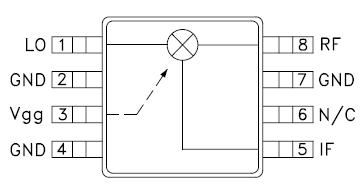

Connection Diagram

Specifications

RF / IF Input	+13 dBm
LO Drive	+27 dBm
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC216MS8 is an ultra miniature doublebalanced FET mixer in an 8 lead plastic surface mount package (MSOP). This MMIC mixer is constructed of switched GaAs FETs and novel planar transformer baluns on the chip. In addition to an LO drive of +3 to +13 dBm, a gate voltage of Vgg = -0.9 to -1.6 Vdc is required. The HMC216MS8 can be used as an upconverter or downconverter for 1900 or 2400 MHz applications. The consistent MMIC performance will improve system operation and assure regulatory compliance.
