HMC210MS8

Features:

Single Positive Voltage Control: 0 to +2.5V
High Attenuation Range: >50 dB @ 1.9 GHz
High Input IP3: +15 dBm Typical (All Attenuation States)
Ultra Small Package: MSOP


Application

The HMC210MS8 is ideal for:
  • Base Station Infrastructure
  • Portable Wireless
  • MMDS

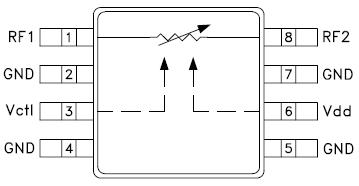

Pinout




Specifications

VCTL ................................................  -0.2 Vdc to Vdd
Vdd  ................................................. +8 Vdc
Maximum Input Power (Vdd = +2.5 Vdc)
  ....................................................... +26 dBm @ Min. Attenuation, VCTL = +0.0V
  ....................................................... +20 dBm @ Atten. >2 dB
Storage Temperature ...................... -65 to +150 °C
Operating Temperature ................... -40 to +85 °C


Description

The HMC210MS8 is a miniature absorptive voltage variable attenuator in an 8-lead MSOP package. The HMC210MS8 operates with a positive supply voltage (+2.5V), and a positive control voltage. A unique feature is the high third order intercept point for all attenuation states. Operation up to 2.3 GHz is possible with a reduced attenuation range of 31 dB.
