Product Details

Description

Features:

Conversion Loss: 9.0 dB
LO / IF Isolation: 45 dB
LO / RF Isolation: 40 dB
IP3 (Input): +17 dBm

Application

The HMC207S8 is ideal for:
• Base Stations
• Cable Modems
• Portable Wireless

Pinout

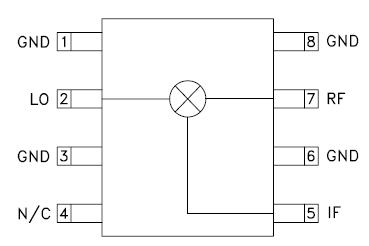

Connection Diagram

Specifications

RF / IF Input	+13 dBm
LO Drive	+27 dBm
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC207S8 is a miniature double-balanced mixer in an 8 lead plastic surface mount Small Outline IC (SOIC) package. This passive MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The HMC207S8 can be used as an upconverter, downconverter, biphase modulator (de)modulator, or phase comparator. The consistent MMIC performance will improve system operation and assure regulatory compliance. The high LO suppression of 45 to 50 dB yields excellent carrier suppression for modulator applications.
