HMC194MS8

Features: Ultra Small Package: MSOP8High Isolation: 50 dBPositive Control: 0/+3V to 0/+7VApplicationThe HMC194MS8 is ideal for:• Cellular/PCS Base Stations• Portable Wireless• MMDS & WirelessLANPinoutSpecifications Control Voltage Range (A & B) -0.2 to +7.5 Vdc ...

product image

HMC194MS8 Picture
See larger image
SeekIC No. : 004363726 Detail

HMC194MS8: Features: Ultra Small Package: MSOP8High Isolation: 50 dBPositive Control: 0/+3V to 0/+7VApplicationThe HMC194MS8 is ideal for:• Cellular/PCS Base Stations• Portable Wireless• MMDS...

HMC194MS8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC194MS8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultra Small Package: MSOP8
High Isolation: 50 dB
Positive Control: 0/+3V to 0/+7V




Application

The HMC194MS8 is ideal for:
• Cellular/PCS Base Stations
• Portable Wireless
• MMDS & WirelessLAN




Pinout

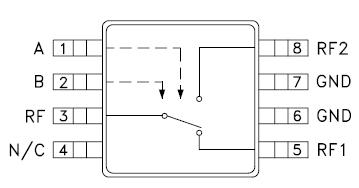

Connection Diagram

Connection Diagram




Specifications

Control Voltage Range (A & B) -0.2 to +7.5 Vdc
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C





Description

The HMC194MS8 is designed as one kind of low-cost SPDT switch in an 8-lead MSOP package for use in applications which require high isolation between two RF paths.It can control signals from DC to 3 GHz and has been optimized to provide extremely high isolation with minimal insertion loss in medium and low power applications.

Features of the HMC194MS8 are:(1)ultra small package:MSOP8;(2)high isolation:50 dB;(3)positive control:0/+3V to 0/+7V.It can be used in cellular/PCS base stations,portable wireless,MMDS & wirelessLAN.

The absolute maximum ratings of the HMC194MS8 can be summarized as:(1)control voltage range (A & B):-0.2 to +7.5 Vdc;(2)storage temperature:-65 to +150 °C;(3)operating temperature:-40 to +85 °C.If you want to know more information such as the electrical characteristics about the HMC194MS8,please download the datasheet in www.seekic.com or www.chinaicmart.com .
