HMC1052L

Features:

·Miniature 16-Pin LCC Package (3 x 3 x 0.9mm)
·Two AMR Bridges in One Package
·Wide Field Range of +/- 6 Gauss
·1.0 mV/V/gauss Sensitivity
·High Accuracy Compassing
·Low Profile for Tight Space Constraints
·Patented On-chip Set/Reset Straps

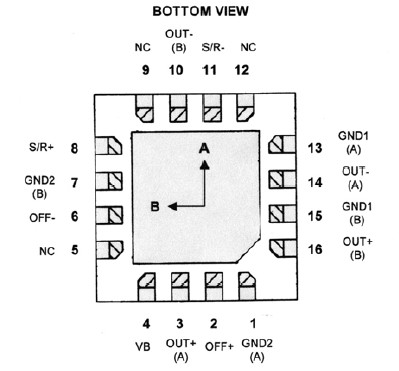

Pinout




Description

The Honeywell HMC1052L is a high performance magnetoresistive sensor design in a single package. The advantages of this design are magnetoresistive chips positioned for orthogonal two-axis sensing, minature size and low height profile in a surface mount package.

Each of the HMC1052L magnetoresistive sensors are configured as a 4-element wheatstone bridges to convert magnetic fields to differential output voltages. Capable of sensing fields below 0.1 milligauss, this sensor offers a compact, low cost, high sensitivity and highly reliable solution for low field magnetic sensing.


Parameters:

Technical/Catalog Information	HMC1052L
Vendor	Honeywell Microelectronics & Precision Sensors
Category	Sensors, Transducers
Features	Compass - Two Axis
Package / Case	16-LCC
Current - Output (Max)	-
Sensing Range	±6g
Operating Temperature	-40°C ~ 125°C
Output Type	Analog
Type	Linear Field Sensor
Voltage - Supply	1.8 V ~ 20 V
Current - Supply	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HMC1052L HMC1052L 342 1042 5 ND 34210425ND 342-1042-5
