HM674100H

Features: · 1,048,576-word× 4-bit organization.· Directly TTL compatible input and output.· +5 V Single supply.· Completely static memory.· No clock or timing strobe required.· Super fast access time: 15/20/25 ns (max).· Revolutional pin arrangement.PinoutSpecifications Parameter Symbol ...

product image

HM674100H Picture
See larger image
SeekIC No. : 004363614 Detail

HM674100H: Features: · 1,048,576-word× 4-bit organization.· Directly TTL compatible input and output.· +5 V Single supply.· Completely static memory.· No clock or timing strobe required.· Super fast access tim...

HM674100H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM674100H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  1,048,576-word× 4-bit organization.
·  Directly TTL compatible input and output.
·  +5 V Single supply.
·  Completely static memory.
·  No clock or timing strobe required.
·  Super fast access time: 15/20/25 ns (max).
·  Revolutional pin arrangement.

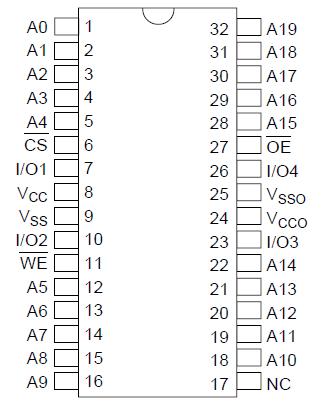

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
supply voltage*1
VCC
0.5 to + 7.0
V
Voltage on any pin relative to VSS*1
VT
0.5 to VCC + 0.5
V
Power dissipation
PT
1.0/1.5 *2
W
Operating temperatue range
Topr
0 to +70
°C
Storage temperature Range (with bias)
Tstg
10 to + 85
°C
Storage temperature under bias
Tbias
55 to + 125
°C

Notes:
1 With respect to VSS = VSSO
2 PT = 1.5 W is guaranteed under the minimum air flow exceeding 500 linear feet per minute.
Under the DC and AC specifications shown in the Tables, this device is tested under the minimum
transverse air flow exceeding 500 linear feet per minute.
