HM5241605C

Features: · 3.3V Power supply· Clock frequency: 80 MHz (VCC min = 3.0 V)/66 MHz/57 MHz (max): 83 MHz (VCC min = 3.15 V)· LVTTL interface· Single pulsed RAS· 2 Banks can operates simultaneously and independently· Burst read/write operation and burst read/single write operation capability· Programma...

product image

HM5241605C Picture
See larger image
SeekIC No. : 004363434 Detail

HM5241605C: Features: · 3.3V Power supply· Clock frequency: 80 MHz (VCC min = 3.0 V)/66 MHz/57 MHz (max): 83 MHz (VCC min = 3.15 V)· LVTTL interface· Single pulsed RAS· 2 Banks can operates simultaneously and i...

HM5241605C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM5241605C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  3.3V Power supply
·  Clock frequency: 80 MHz (VCC min = 3.0 V)/66 MHz/57 MHz (max)
: 83 MHz (VCC min = 3.15 V)
·  LVTTL interface
·  Single pulsed RAS
·  2 Banks can operates simultaneously and independently
·  Burst read/write operation and burst read/single write operation capability
·  Programmable burst length: 1/2/4/8/full page (256)
·  Programmable burst sequence:
- Sequential
- Interleave
·  Full page burst length capability
-Sequential burst
- Burst stop capability
·  Programmable CAS latency: 1/2/3
·  Byte control by DQMU and DQML
·  1024 refresh cycles: 16 ms
·  2 variations of refresh
- Auto refresh
- Self refresh

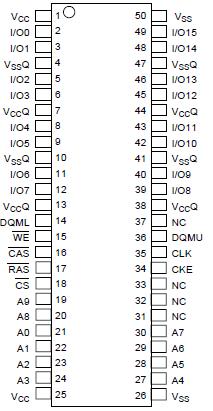

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit Notes
Voltage on any pin relative to VSS VT 1.0 to +5.5 V 1, 2
Supply voltage relative to VSS VCC 1.0 to +4.6 V 2
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125
Notes: 1. VIH (max) = 5.75 V for pulse width 5 ns.
2. Respect to VSS.


Description

All inputs and outputs are referred to the rising edge of the clock input. The HM5241605C is offered in 2 banks for improved performance.
