Product Details

Description



Features:

• 3.3V Power supply
• Clock frequency: 125 MHz/100 MHz/83 MHz (max)
• SSTL interface
• Single pulsed RAS
• 2 Banks can operates simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• Programmable burst length: 2/4/8
• 2 variations of burst sequence
- Sequential (BL = 2/4/8)
- Interleave (BL = 2/4/8)
• Programmable CAS latency: 2/3
• Refresh cycles: 4096 refresh cycles/64 ms
• 2 variations of refresh
-  Auto refresh
-  Self refresh


Pinout

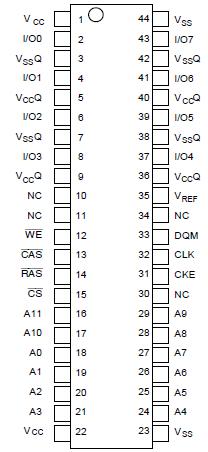

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 1.0 to +4.6 V
Supply voltage relative to VSS VCC 1.0 to +4.6 V
Short circuit output current Iout 55 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125
Note: 1. Respect to VSS


Description

All inputs and outputs are referred to the rising edge of the clock input. The HM5216808C Series, HM5216408C Series are compatible with SSTL-3 (Stub Serires-Terminated Transceiver Logic for 3.3 V) Class II.
