HM5216326

Features: · 3.3V Power supply· Clock frequency: 125 MHz/100 MHz/83 MHz (max)· LVTTL interface· 2 Banks can operates simultaneously and independently· Burst read/write operation and burst read/ single write operation capability· Programmable burst length: 1/2/4/8/full page· 2 variations of burst se...

product image

HM5216326 Picture
See larger image
SeekIC No. : 004363424 Detail

HM5216326: Features: · 3.3V Power supply· Clock frequency: 125 MHz/100 MHz/83 MHz (max)· LVTTL interface· 2 Banks can operates simultaneously and independently· Burst read/write operation and burst read/ singl...

HM5216326 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM5216326
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  3.3V Power supply
·  Clock frequency: 125 MHz/100 MHz/83 MHz (max)
·  LVTTL interface
·  2 Banks can operates simultaneously and independently
·  Burst read/write operation and burst read/ single write operation capability
·  Programmable burst length: 1/2/4/8/full page
·  2 variations of burst sequence
- Sequential (BL = 1/2/4/8/full page)
- Interleave (BL = 1/2/4/8)
·  Programmable CAS latency: 1/2/3
·  Byte control by DQM
·  8 column block write function with column address mask
·  Write per bit function (old mask)
·  Refresh cycles: 2048 refresh cycle/32 ms
·  2 variations of refresh
- Auto refresh
- Self refresh


Pinout

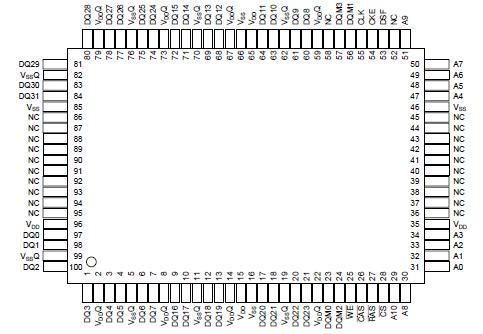

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 1.0 to +4.6 V
Supply voltage relative to VSS VCC 1.0 to +4.6 V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125



Description

All inputs and outputs signals refers to the rising edge of the clock input. The HM5216326 provides 2 banks to realize better performance. 8 column block write function and write per bit function are provided for graphic applications.
