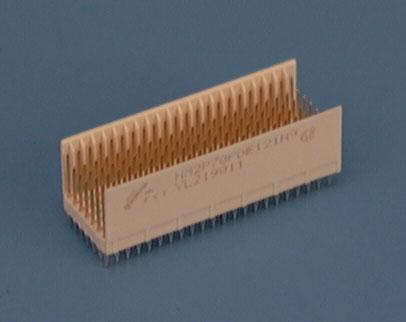

See larger image

SeekIC No. : 002102473 Detail

HM2P70PDR2N1N9LF: Hard Metric Connectors 5ROW STRT HEADER TYPE B22

HM2P70PDR2N1N9LF Data Sheet

US $ 1.48~1.48 / Piece | Get Latest Price

Part Number:: HM2P70PDR2N1N9LF
Mfg:: FCI
Supply Ability:: 5000

Price Break

Qty
0~825

Unit Price
$1.48

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HM2P01P2LF evaluate
US $.23 - .3 / Piece

Hard Metric Connectors HM2P01P2LF-MPACS SPACER FOR TYP
HM2P07PA5110AA evaluate
US $3.4 - 3.49 / Piece

Hard Metric Connectors MPAC 5R ST PF HDR CNT TYP A
HM2P07PA5110AALF evaluate
US $3.44 - 5.24 / Piece

Hard Metric Connectors MPAC 5R ST PF HDR CNT TYP A

Product Details

Quick Details

Series :	Millipacs	Product Type :	Male
Number of Rows :	5	Number of Positions / Contacts :	110
Mounting Angle :	Straight	Termination Style :	Press Fit
Housing Material :	Thermoplastic	Contact Material :	Phospher Bronze
Type :	Module Type B (22 Positions)

Description

Contact Plating :
Number of Positions / Contacts : 110
Termination Style : Press Fit
Number of Rows : 5
Series : Millipacs
Product Type : Male
Mounting Angle : Straight
Housing Material : Thermoplastic
Contact Material : Phospher Bronze
Type : Module Type B (22 Positions)

Parameters:

Technical/Catalog Information	HM2P70PDR2N1N9LF
Vendor	FCI
Category	Connectors
Color	Cream
Connector Type	Header, Male Pins, Shrouded
Connector Usage	Hard Metric B22
Contact Finish	Gold
Contact Termination	Press-Fit
Features	Selective Shielding
Mounting Type	Through Hole
Number of Contacts Loaded	All
Number of Rows	5 + 2
Packaging	Tray
Pitch	0.079" (2.00mm)
Row Spacing	0.079" (2.00mm)
Ratings	IEC 1076-4-101
Contact Finish Thickness	30in (0.76m)
Number of Positions	154 (110 + 44 Ground)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HM2P70PDR2N1N9LF HM2P70PDR2N1N9LF
