HL15203

Features: • LCD display ..................................... 52 segments x 3 commons1/3 duty - 1/2 bias1/3 duty - 1/3 bias• Power down mode ............................ Sleep mode and all segments off mode• Serial I/O .............................................. Data transfer ...

product image

HL15203 Picture
See larger image
SeekIC No. : 004362875 Detail

HL15203: Features: • LCD display ..................................... 52 segments x 3 commons1/3 duty - 1/2 bias1/3 duty - 1/3 bias• Power down mode ............................ Sleep mode and a...

HL15203 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HL15203
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• LCD display ..................................... 52 segments x 3 commons
                                                             1/3 duty - 1/2 bias
                                                             1/3 duty - 1/3 bias
• Power down mode ............................ Sleep mode and all segments off mode
• Serial I/O .............................................. Data transfer and receive
• RC oscillator
• Package ............................................... 64QFP


Pinout

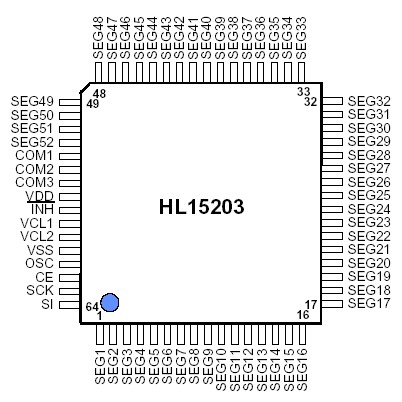

Connection Diagram


Specifications

Parameter Symbol Condition Rating unit
Maximum supply voltage VDD max VDD -0.3 to +6.5 V
Input voltage Vin1 CE,SCK,SI,INH -0.3 to +6.5 V
Vin2 OSC -0.3 to VDD+0.3 V
Output voltage Vout OSC -0.3 to VDD+0.3 V
Output current Iout1 SEG1 to SEG52 300 uA
Iout2 COM1 to COM3 3 mA
Allowable power dissipation Pd max

Ta = 85..

 200 mW
Operating temperature Topr   -40 to +85 ..
Storage temperature Tstg   -55 to +125 ..



Description

The HL15203 is 1/3 duty LCD display driver. It can drive directly maximum 156 segments.
