HIP7030A2

Features: • Fully Supports VPW Specifications of SAE J1850 Standard for Class B Data Communications Network Interface• On-Chip Memory• 176 Bytes of RAM• 2110 Bytes of User ROM• 13 Bidirectional I/O Lines• 16-Bit Timer with Capture and Compare Registers• Se...

product image

HIP7030A2 Picture
See larger image
SeekIC No. : 004362780 Detail

HIP7030A2: Features: • Fully Supports VPW Specifications of SAE J1850 Standard for Class B Data Communications Network Interface• On-Chip Memory• 176 Bytes of RAM• 2110 Bytes of User RO...

HIP7030A2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HIP7030A2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully Supports VPW Specifications of SAE J1850
   Standard for Class B Data Communications Network Interface
• On-Chip Memory
• 176 Bytes of RAM
• 2110 Bytes of User ROM
• 13 Bidirectional I/O Lines
• 16-Bit Timer with Capture and Compare Registers
• Serial Peripheral Interface (SPI) System
• Watchdog Timer and Slow Clock Detect
• 10MHz Operating Frequency (5.0MHz Internal Bus
   Frequency) at 5V
• Built-In-Test Bootstrap Mode with 242 Bytes of ROM
• Two Channel Analog Comparator
• On-Chip Oscillator Amplifier
• 8-Bit CPU Architecture
• Power-Saving STOP, WAIT and Data Retention Modes
• Full -40oC to 125oC Operating Range
• Single 3.0V to 6.0V Supply
• 28 Lead Dual-In-Line and Small Outline Plastic Packages


Pinout

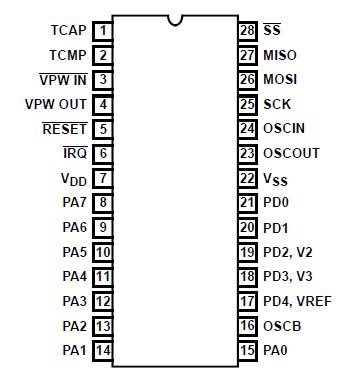

Connection Diagram


Specifications

Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +7.0V
Input or Output Voltage
Pins with VDD Diode . . . . . . . . . . . . . . . . . . . . . . -0.3V to VDD +0.3V
Pins without VDD Diode . . . . . . . . . . . . . . . . . . . . . .  . -0.3V to +10V
Current Drain Per Pin, I (Excluding VDD and VSS) . . . . . . . .. . . 25mA
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . . +265
ESD Classification . . . . . . . . . . . . . . . . . . . . . .  . . .  . . . .  . . . Class 2
Gate Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9000 Gates
Thermal Resistance (Typical) qJA
Plastic DIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 60oC/W
Plastic SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  75oC/W
Maximum Package Power Dissipation at +125
DIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  415mW
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  325mW
Operating Temperature Range (TA) . . . . . . . . . . . . .-40  to +125
Storage Temperature Range (TSTG). . . . . . . . . . . . .-65  to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . .  .. . . . . . . . +150


Description

The HIP7030A2 HCMOS Microcomputer is a member of the CDP68HC05 family of low-cost single-chip microcomputers. The integrated hardware functions provide the system designer with a complete set of building blocks for implementing a "Class B" multiplexed communications network interface, which fully conforms to the VPW Multiplexed Wiring protocol specified in SAE Recommended Practice J1850. This 8-bit microcomputer unit (MCU) contains an onchip oscillator, CPU, 176 bytes of RAM, 2110 bytes of user ROM, 13 I/O lines, a J1850 Variable Pulse Width Symbol Encoder/Decoder (VPW SENDEC) system, a Serial Peripheral Interface (SPI) system, a two channel analog Comparator, a Watchdog Timer, a Slow Clock Detect, and a 16-bit Timer. The static HIP7030A2 HCMOS design allows operation at input frequencies up to 10MHz (5MHz internal clock).
