HIP6503

Features:

• Provides 5 ACPI-Controlled Voltages
- 5VDUAL USB/Keyboard/Mouse (Active/Sleep)
- 3.3VDUAL/3.3VSB PCI/Auxiliary/LAN (Active/Sleep)
- 2.5VMEM RDRAM or 3.3VMEM SDRAM (Active/Sleep)
- 2.5VCLK Clock/Processor Terminations (Active Only)
- 1.8VSB ICH2 Resume
• Excellent Output Voltage Regulation
- 3.3VDUAL/3.3VSB Output: ±2.0% Over Temperature; Sleep State Only
- 2.5VMEM/3.3VMEM Output: ±2.0% Over Temperature; Both Operational States (3.3VMEM in sleep only)
- 1.8VSB, 2.5VCLK Outputs: ±2.0% Over Temperature
• Small Size
- Very Low External Component Count
• Dual Memory Voltage Selection Via FAULT/MSEL Pin
- 2.5V for RDRAM Memory
- 3.3V for SDRAM Memory
• Undervoltage Monitoring of All Outputs with Centralized FAULT Reporting and Temperature Shutdown




Application

• Motherboard Power Regulation for ACPI-Compliant Computers

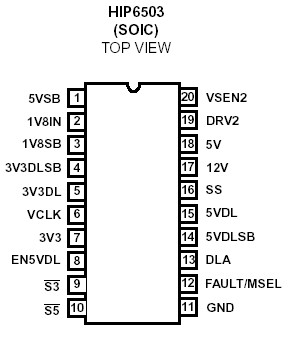

Pinout






Specifications

Supply Voltage, V_5VSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7.0V
12V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to +14.5V
DLA, DRV2. . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to V_12V +0.3V
All Other Pins . . . . . . . . . . . . . . . . . . . . GND - 0.3V to 5VSB + 0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 3




Description

The HIP6503 complements either an HIP6020 or an HIP6021 in ACPI-compliant designs for microprocessor and computer applications. The HIP6503 IC integrates four linear controllers/regulators, switching, monitoring and control functions into a 20 pin SOIC package. One linear controller generates the 3.3VDUAL/3.3VSB voltage plane from the ATX supplys 5VSB output, powering the south bridge and the PCI slots through an external pass transistor during sleep states (S3, S4/S5). A second transistor is used to switch in the ATX 3.3V output for operation during S0 and S1/S2 (active) operating states. A linear controllers/regulator supplies at choice either of 2.5V or 3.3V memory power through external pass transistors (switch for 3.3V setting) in active states. During sleep states, integrated pass transistors supply the sleep power. Another controller powers up the 5VDUAL plane by switching in the ATX 5V output in active states, and the ATX 5VSB in sleep states. Two internal regulators output both a dedicated, noise-free 2.5V clock chip supply, as well as a 1.8V ICH2 resume well voltage. The HIP6503s operating mode (active outputs or sleep outputs) is selectable through two digital control pins, S3 and S5. Enabling sleep state support on the 5VDUAL output is offered through the EN5VDL pin. In active state, the 3.3VDUAL/3.3VSB and 2.5VMEM/3.3VMEM linear regulators use external N-channel pass MOSFETs to connect the outputs directly to the 3.3V input supplied by an ATX power supply, for minimal losses. In sleep state, power delivery on both outputs is transferred to NPN transistors. Active state regulation on the 2.5VMEM output is performed through an external NPN transistor. The 5VDUAL output is powered through two external MOS transistors. In sleep states, a PMOS (or PNP) transistor conducts the current from the ATX 5VSB output; while in active state, current flow is transferred to an NMOS transistor connected to the ATX 5V output. The operation of the 5VDUAL output is dictated not only by the status of the S3 and S5 pins, but that of the EN5VDL pin as well. The 3.3VDUAL/3.3VSB and 1.8VSB outputs are active for as long as the ATX 5VSB voltage is applied to the chip. The 2.5VCLK output of HIP6503 is only active during S0 and S1/S2, and uses the 3V3 pin as input source for its internal pass element.
