HIP4081A

Features:

• Independently Drives 4 N-Channel FET in Half Bridge or Full Bridge Configurations
• Bootstrap Supply Max Voltage to 95VDC
• Drives 1000pF Load at 1MHz in Free Air at 50oC with Rise and Fall Times of Typically 10ns
• User-Programmable Dead Time
• On-Chip Charge-Pump and Bootstrap Upper Bias Supplies
• DIS (Disable) Overrides Input Control
• Input Logic Thresholds Compatible with 5V to 15V Logic Levels
• Very Low Power Consumption
• Undervoltage Protection




Application

• Medium/Large Voice Coil Motors
• Full Bridge Power Supplies
• Class D Audio Power Amplifiers
• High Performance Motor Controls
• Noise Cancellation Systems
• Battery Powered Vehicles
• Peripherals
• U.P.S.

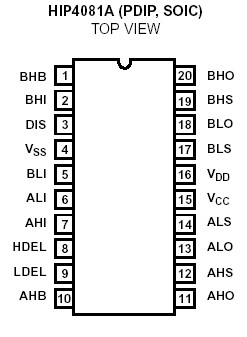

Pinout






Specifications

Supply Voltage, V_DD and V_CC. . . . . . . . . . . . . .. . . . . -0.3V to 16V
Logic I/O Voltages . . . . . . . . . . . . . . . . . . . . . -0.3V to V_DD +0.3V
Voltage on AHS, BHS. . . . -6.0V (Transient) to 80V (25 to 125)
Voltage on AHS, BHS. . . -6.0V (Transient) to 70V (-55 to 125)
Voltage on ALS, BLS . . . . . -2.0V (Transient) to +2.0V (Transient)
Voltage on AHB, BHB. . . . . . .VAHS, BHS -0.3V to VAHS, BHS +V_DD
Voltage on ALO, BLO . . . . . . . . . . . . V_ALS, BLS -0.3V to V_CC +0.3V
Voltage on AHO, BHO . . . . . . V_AHS, BHS -0.3V to V_AHB, BHB +0.3V
Input Current, HDEL and LDEL . . . . . . . . . . . . . . . . . -5mA to 0mA
Phase Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V/ns




Description

The HIP4081A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. It can drive every possible switch combination except those which would cause a shoot-through condition. The HIP4081A can switch at frequencies up to 1MHz and is well suited to driving Voice Coil Motors, high-frequency switching power amplifiers, and power supplies. For example, the HIP4081A can drive medium voltage brush motors, and two products can be used to drive high performance stepper motors, since the short minimum on-time can provide fine micro-stepping capability. Short propagation delays of approximately 55ns maximizes control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in rapid, precise control of the driven load. A similar part, the HIP4080A, includes an on-chip input comparator to create a PWM signal from an external triangle wave and to facilitate hysteresis mode switching.
