HI7106

Features:

• Guaranteed Zero Reading for 0V Input on All Scales
• True Polarity at Zero for Precise Null Detection
• 1pA Typical Input Current
• True Differential Input and Reference, Direct Display Drive
• Low Noise - Less Than 15mVP-P
• On Chip Clock and Reference
• Low Power Dissipation - Typically Less Than 10mW
• No Additional Active Circuits Required
• Enhanced Display Stability
• Enhanced VCOM Reference Stability

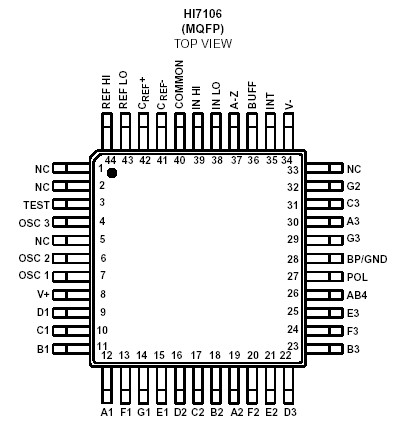

Pinout




Specifications

Supply Voltage
HI7106, V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Analog Input Voltage (Either Input) (Note 1). . . . . . . . . . V+ to V
Reference Input Voltage (Either Input) . . . . . . . . . . . . . . V+ to V
Clock Input
HI7106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TEST to V+


Description

The Intersil HI7106 is a high performance, low power, 31/2 digit A/D converter. Included are seven segment decoders, display drivers, a reference, and a clock. The HI7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive.

The HI7106 brings together a combination of high accuracy, versatility, and true economy. It features auto-zero to less than 10mV, zero drift of less than 1mV/oC, input bias current of 10pA (Max), and rollover error of less than one count.

True differential inputs and reference of HI7106 are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers. Finally, the true economy of single power supply operation enables a high performance panel meter to be built with the addition of only 10 passive components and a display.
