Features: • Differential Linearity Error. . . . . . . . . . . . . . . . . ±0.2 LSB
• Integral Linearity Error . . . . . . . . . . . . . . . . . . ±0.2 LSB
• Single +5V Power Supply Operation Available
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . . .7pF
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 200MHz
• Low Power Consumption . . . . . . . . . . . . . . . . . .360mW
• CLK/2 Clock Output Pin
• Excellent Temperature Characteristics
• 1:2 Demultiplexed Output
• Internal 1/2 Frequency Divider Circuit (With Reset Function)
• Compatible with ECL, PECL and TTL Digital Input Levels
• Direct Replacement for Sony CXA3086Application• RGB Graphics Processing (LCD, PDP)
• Digital Communications (QPSK, QAM)

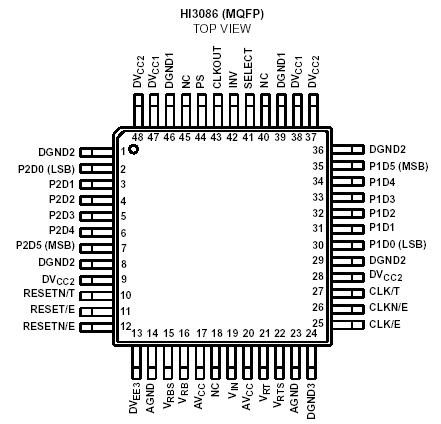

• Magnetic Recording (PRML)PinoutSpecificationsSupply Voltage . . . . . . . . . . . (AVCC, DVCC1, DVCC2) -0.5V to 7.0V
(DGND3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7.0V
(DVEE3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -7.0V to 0.5V
(DGND3 - DVEE3) . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7.0V
Analog Input Voltage (VIN) . . . . . . . . . . . . . .. .VRT - 2.7V to AVCC
Reference Input Voltage (VRT) . . . . . . . . . . . . . . . . .2.7V to AVCC
(VRB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIN - 2.7V to AVCC
(|VRT - VRB|) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Digital Input Voltage
ECL (***/E (Note 2)) . . . . . . . . . . . . . . . . . . . . . . . .DVEE3 to 0.5V
PECL (***/E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DGND3
TTL (***/T, INV PS) . . . . . . . . . . . . . . . . . . . . . . . .-0.5V to DVCC1
Other (SELECT) . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5V to DVCC1
VID (|***/E - ***N/E| (Note 3)) . . . . . . . . . . . . . . . . . . . . . . 2.7VDescriptionThe HI3086 is a 6-bit, high-speed, flash analog-to-digital converter optimized for high speed, low power, and ease of use.
With a 140 MSPS encode rate capability and full-power analog bandwidth of 200MHz, this HI3086 component is ideal for applications requiring the highest possible dynamic performance.
To minimize system cost and power dissipation, only a +5V power supply is required. The HI3086's clock input interfaces directly to TTL, ECL, or PECL logic and will operate with singleended inputs. The user may select 16-bit demultiplexed output or 8-bit single-channel digital outputs. The demultiplexed mode interleaves the data through two 8-bit channels at 1/2 the clock rate. Operation in demultiplexed mode reduces the speed and cost of external digital interfaces, while allowing the A/D converter to be clocked to the full 140 MSPS conversion rate.
Fabricated with an advanced bipolar process, the HI3086 is provided in a space-saving 48-lead MQFP surface mount plastic package and is specified over the -20 to 75 temperature range.
