HI3050

Features:

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . .Triple 10-Bit
• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . . . 50MHz
• 3-Channel, RGB, I/O
• RS-343A/RS-170 Compatible Outputs
• Low Power Consumption (Typ) . . . . . . . . . . . . .500mW
• Differential Linearity Error . . . . . . . . . . . . . . . ±0.5 LSB
• Low Glitch Energy
• CMOS Compatible Inputs
• Direct Replacement for Sony CXD2308


Application

• NTSC, PAL, SECAM Displays
• High Definition Television (HDTV)
• Presentation and Broadcast Video
• Image Processing
• Graphics Displays

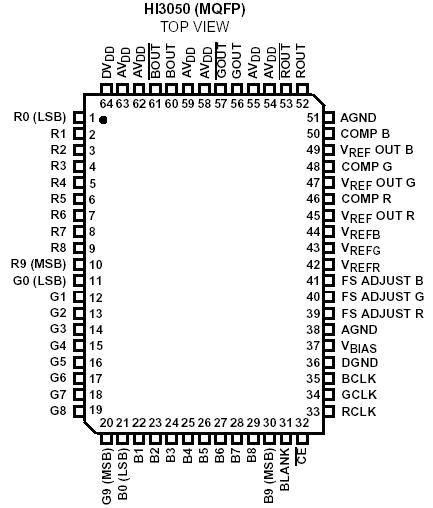

Pinout




Specifications

Digital Supply Voltage, DV_DD to AGND . . . . . . . . . . . . . . . . . . . +7V
Analog Supply Voltage, AV_DD to AGND. . . . . . . . . . . . . . . . . . . +7V
Digital Input Voltages . . . . . . . . . . . . . . . . . . . . . . . DV_DD to DGND
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . .30mA


Description

The HI3050 is a triple, 10-bit D/A converter, fabricated in a silicon gate CMOS process, ideally suited for RGB video applications.

The converter incorporates three 10-bit input data registers with a common blanking capability, forcing all outputs to 0mA. The HI3050 features low glitch, high impedance current outputs and single 5V supply operation. Low current inputs accept standard TTL/CMOS levels. The architecture is a current cell arrangement providing low differential and integral linearity errors.The HI3050 requires a 2V external reference and a set resistor to control the output current. The HI3050 also features a chip enable/disable pin for reducing power consumption (<5mW) when the part is not in use.

The HI3050 can generate RS-343A and RS-170 compatible video signals into doubly terminated and singly terminated 75W loads.
