HI2559

Features: • Two-Channel D/A Converter and Oversampling Digital Filter Into a Single Chip• Distortion . . . . . . . . . . . . . . . . . . . . . . . . 0.012% or Less• S/N Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . .96dB or More• Master Clock . . . . . . . . . . ...

product image

HI2559 Picture
See larger image
SeekIC No. : 004362330 Detail

HI2559: Features: • Two-Channel D/A Converter and Oversampling Digital Filter Into a Single Chip• Distortion . . . . . . . . . . . . . . . . . . . . . . . . 0.012% or Less• S/N Ratio. . . ...

HI2559 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI2559
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two-Channel D/A Converter and Oversampling Digital Filter Into a Single Chip
• Distortion . . . . . . . . . . . . . . . . . . . . . . . . 0.012% or Less
• S/N Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . .96dB or More
• Master Clock . . . . . . . . . . . . . . . . . . . . . 384FS or 256FS


Application

• CD Player and CD-ROM Player, etc.


Pinout

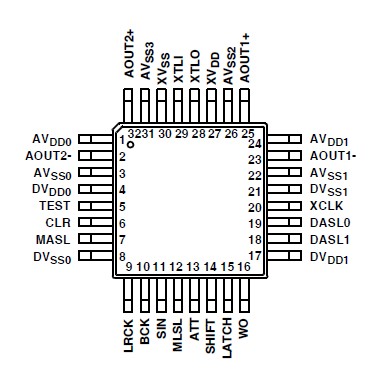

Connection Diagram


Specifications

Supply Voltage (VDD). . . . . . . . . . . . . . . .. . . . . . . VSS -0.5V to 7.0V
Input Voltage (V1). . . . . . . . . . . . . . . . . . . . VSS -0.5V to VDD +0.5V
Output Voltage (V0) . . . . . . . . . . . . . . . .. . . VSS- 0.5V to VDD +0.5V
Operating Temperature (TOPR). . . . . . . . . . . . . . . . . -20oC to 75 oC
Storage Temperature (TSTG) . . . . . . . . . . . . . . . . . . -55oC to 150oC




Description

The HI2559, CXD2559 is a 1-bit stereo D/A converter featuring a 2nd-order system noise shaper. This good cost performance LSI has functions such as digital attenuator and digital de-emphasis and others.
