SeekIC No. : 003447812 Detail

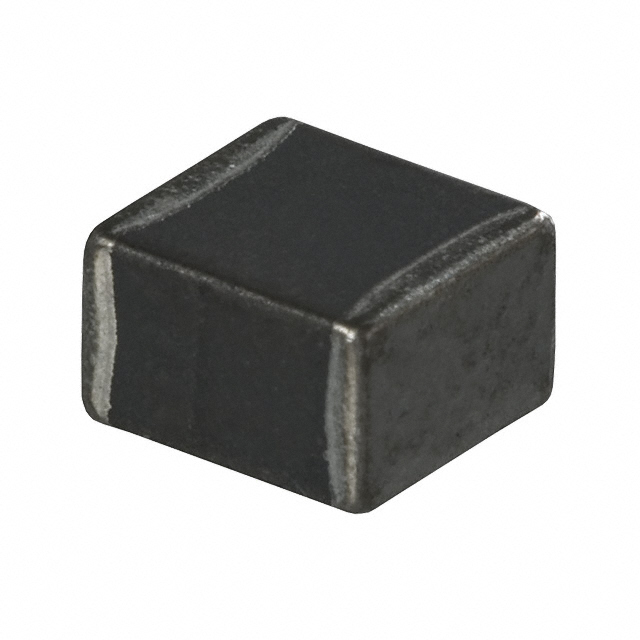

HI2220R301R-00: FERRITE 5A 300 OHM 2220 SMD

HI2220R301R-00 Data Sheet

Get Latest Price

Part Number:: HI2220R301R-00
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HI2220P171R-00 evaluate
FERRITE 4A 170 OHM 2220 SMD
HI2220P171R-10 evaluate
US $.3 - .43 / Piece

EMI Filter Beads, Chokes & Arrays 175ohms 100MHz 4A Monolithic 2220 SMD
HI2220P271R-10 evaluate
US $.43 - .76 / Piece

EMI Filter Beads, Chokes & Arrays 270ohms 100MHz 4A Monolithic 2220 SMD

Product Details

Quick Details

Series:	HI	Manufacturer:	Laird-Signal Integrity Products
Impedance @ Frequency:	300 Ohm @ 100MHz	Current Rating:	5A
DC Resistance (DCR):	20 mOhm Max	Filter Type:	Differential Mode - Single
Package / Case:	2220 (5750 Metric)	Mounting Type:	Surface Mount
Packaging:	Cut Tape (CT)	Height (Max):	0.146" (3.70mm)
Mounting Style :	Screw

Description

Filter Type: Differential Mode - Single
Mounting Type: Surface Mount
Impedance @ Frequency: 300 Ohm @ 100MHz
Current Rating: 5A
DC Resistance (DCR): 20 mOhm Max
Package / Case: 2220 (5750 Metric)
Manufacturer: Laird-Signal Integrity Products
Series: HI
Size / Dimension: 0.220" L x 0.200" W (5.59mm x 5.08mm)
Packaging: Cut Tape (CT)
Height (Max): 0.146" (3.70mm)

Parameters:

Technical/Catalog Information	HI2220R301R-00
Vendor	Steward
Category	Filters
Filter Type	Differential Mode - Single
Current Rating	5A
Frequency	100MHz
Impedance	300 Ohm
Number of Lines	1
Package / Case	2220 (5750 metric)
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
DC Resistance (DCR)	20.00 mOhm Max
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HI2220R301R 00 HI2220R301R00 240 1124 2 ND 24011242ND 240-1124-2
