HI20201

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . . 160MHz
• Resolution (HI20201) . . . . . . . . . . . . . . . . . . . . . . . 10-Bit
• Differential Linearity Error . . . . . . . . . . . . . . . . 0.5 LSB
• Low Glitch Noise
• Analog Multiplying Function
• Low Power Consumption . . . . . . . . . . . . . . . . . .420mW
• Evaluation Board Available
• Direct Replacement for Sony CX20201-1, CX20202-1


Application

• Wireless Communications
• Signal Reconstruction
• Direct Digital Synthesis
• High Definition Video Systems
• Digital Measurement Systems
• Radar

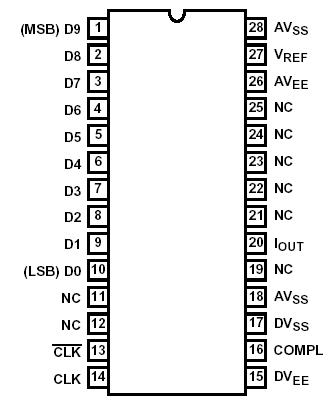

Pinout




Specifications

Digital Supply Voltage D_VEE to D_VSS . . . . . . . . . . . . . . . . . . -7.0V
Analog Supply Voltage A_VDD to A_VSS . . . . . . . . . . . . . . . . . -7.0V
Digital Input Voltage . . . . . . . . . . . . . . . . . . . . . . +0.3 to D_{VEE V}
Reference Input Voltage . . . . . . . . . . . . . . . . . . . +0.3 to A_{VEE V}
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .20mA


Description

The HI20201 is a 160MHz ultra high speed D/A converter. The converter is based on an R/2R switched current source architecture that includes an input data register with a complement feature and is Emitter Coupled Logic (ECL) compatible.

The HI20201 is available in a commercial temperature range and offered in a 28 lead plastic SOIC (300 mil) and a 28 lead plastic DIP package.
