Product Details

Description



Features:

• Ultra-High Speed Operation with Maximum
Conversion Rate. . . . . . . . . . . . . . . . . . . . . . . 140 MSPS
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . . .7pF
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 210MHz
• Low Power Consumption . . . . . . . . . . . . . . . . . .325mW
• Low Error Rate
• Excellent Temperature Characteristics
• 1:2 Demultiplexed Output (TTL Level)
• Direct Replacement for Sony CXA1866


Application

• LCD Panels
• Magnetic Recording (PRML)
• Communications (QPSK, QAM)

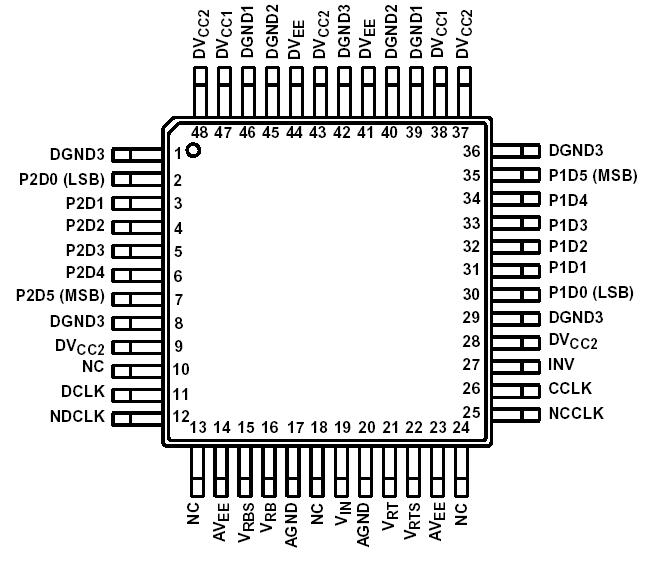

Pinout

Connection Diagram


Specifications

Supply Voltage (AVEE, DVEE) . . . . . . . .. . . .  -7V to 0.5V
(DVCC) (Note 2). . . . . . . . . . . . . . . . . . . . ..0.5V to 7.0V
Reference Voltage (VRT, VRB) . . . . . . . . . .-2.7V to 0.5V
(úVRT - VRBú). . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5V
Analog Input Voltage (VIN) . . . . . . . . . . . .-2.7V to 0.5V
Digital Input Voltage (DIN) (Note 3) .. . . . .-4.0V to 0.5V
(÷ CCLKNCCLK÷ , ÷ DCLKNDCLK÷ ) . . . . . . . .2.5V
Digital Output Current (ID0 to ID6) . . .-30mA to +30mA
Storage Temperature (TSTG) . . . . . . . . . . -65 to 150
Ambient Operating Temperature (TA) . . . . .-20 to 75
Allowable Power Dissipation (PD). . . . . . . . . . . . 750mW


Description

HI1866 is a 6-bit, high-speed, flash A/D converter capable of digitizing analog signals at the maximum rate of 140 MSPS. The digital input level is compatible with the ECL 100K/10KH/10K.
