HI1176

Features: • Resolution ±0.5 LSB (DNL) . . . . . . . . . . . . . . . . . . . 8-Bit• Maximum Sampling Frequency . . . . . . . . . . . 20 MSPS• Low Power Consumption at 20 MSPS (Typ)(Reference Current Excluded) . . . . . . . . . . . . . . .60mW• Built-In Sync Clamp Function...

product image

HI1176 Picture
See larger image
SeekIC No. : 004362277 Detail

HI1176: Features: • Resolution ±0.5 LSB (DNL) . . . . . . . . . . . . . . . . . . . 8-Bit• Maximum Sampling Frequency . . . . . . . . . . . 20 MSPS• Low Power Consumption at 20 MSPS (Typ)(...

HI1176 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI1176
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution ±0.5 LSB (DNL) . . . . . . . . . . . . . . . . . . . 8-Bit
• Maximum Sampling Frequency . . . . . . . . . . . 20 MSPS
• Low Power Consumption at 20 MSPS (Typ)
(Reference Current Excluded) . . . . . . . . . . . . . . .60mW
• Built-In Sync Clamp Function
• Built-In Monostable Multivibrator for Clamp Pulse
Generation
• Built-In Sync Pulse Polarity Selection Function
• Clamp Pulse Direct Input Possible
• Built-In Clamp ON/OFF Function
• Built-In Reference Voltage Self Bias Circuit
• Input CMOS Compatible
• Three-State TTL Compatible Output
• Single +5V Power Supply
• Low Input Capacitance (Typ) . . . . . . . . . . . . . . . . 11pF
• Reference Impedance (Typ) . . . . . . . . . . . . . . . . . 300W
• Direct Replacement for the Sony CXD1176


Application

• Video Digitizing
• Image Scanners
• Low Cost High Speed Data Acquisition Systems
• Multimedia


Pinout

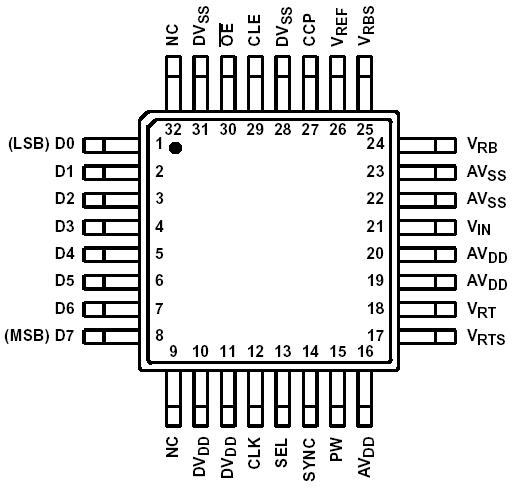

Connection Diagram


Specifications

Supply Voltage, VDD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Reference Voltage, VRT, VRB . . . . . . VDD + 0.5V to VSS - 0.5V
Analog Input Voltage, VIN. . . . . . . .  VDD + 0.5V to VSS - 0.5V
Digital Input Voltage, CLK. . . . . . . . . VDD + 0.5V to VSS - 0.5V
Digital Output Voltage, VOH, VOL. . .  VDD + 0.5V to VSS - 0.5V


Description

The HI1176 is an 8-bit, CMOS analog-to-digital converter for video use that features a sync clamp function. The adoption of a 2-step parallel method realizes low power consumption and a maximum conversion speed of 20 MSPS. For higher sampling rates, refer to the pin-for-pin compatible HI1179 data sheet, AnswerFAX document number 3666.
