HI1171

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . . . 40MHz
• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-Bit
• Integral Linearity Error . . . . . . . . . . . . . . . . . . 0.25 LSB
• Low Glitch Noise
• Single Supply Operation . . . . . . . . . . . . . . . . . . . . . .+5V
• Low Power Consumption (Max) . . . . . . . . . . . . . .80mW
• Evaluation Board Available (HI1171-EV)
• Direct Replacement for the Sony CXD1171


Application

• Wireless Telecommunications
• Signal Reconstruction
• Direct Digital Synthesis
• Imaging
• Presentation and Broadcast Video
• Graphics Displays
• Signal Generators

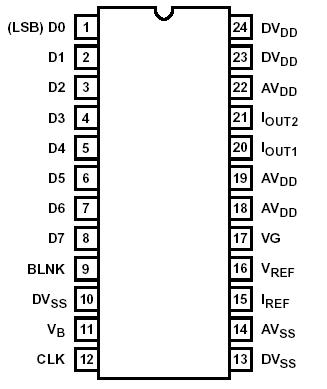

Pinout




Specifications

Digital Supply Voltage DVDD to DVSS . . . . . . . . . . . . . . . . . . +7.0V
Analog Supply Voltage AVDD to AVSS . . . . . . . . . . . . . . . . . .+7.0V
Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . VDD to VSS V
Output Current . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .0mA to 15mA


Description

The HI1171 is an 8-bit, 40MHz, high speed D/A converter. The converter incorporates an 8-bit input data register with blanking capability, and current outputs. The HI1171 features low glitch outputs. The architecture is a current cell arrangement to provide low linearity errors.

The HI1171 is available in an Industrial temperature range and is offered in a 24 lead (200 mil) SOIC plastic package. For dual version, please refer to the HI1177 Data Sheet. For triple version, please refer to the HI1178 Data Sheet.
