Product Details

Description



Features:

·On-chip zener to set output levels
·On-chip line driver slope control and selection by logic input
·Low current 12 to 15 volt supplies
·CMOS / TTL logic pins
·Plastic and ceramic package options -surface mount and DIP
·Themally enhanced SOIC packages
·Mil processing available


Application

Figure 2 shows a possible application of the HI-8585/86 interfacing an ARINC transmit channel fromtheHI-6010.


Pinout

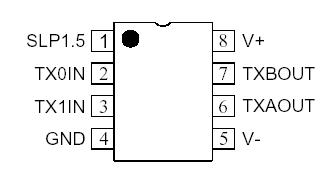

Connection Diagram


Specifications

Supply voltages V+.......................................................................20V
Supply voltages V-.......................................................................-20V
DC current per input pin.......................................................... +10mA
Power dissipation at 25°C plastic DIL......... 1.0W, derate 10mW/°C
Power dissipation at 25°C  ceramic DIL......... 0.5W, derate 7mW/°C
Solder Temperature ................................................ 275°C for 10 sec
Storage Temperature..............................................-65°C to +150°C


Description

The HI-8585 and HI-8586 are CMOS integrated circuits designed to directly drive the ARINC 429 bus in an 8 pin package. Two logic inputs control a differential voltage between the output pins producing a +10 volt One, a -10volt Zero, anda0volt Null.

The CMOS/TTL control inputs are translated to ARINC specified amplitudes using on board zeners. Alogic input is provided to control the slope of the differential output signal. Timing is set by on-chip resistor and capacitor and testedtobewithinARINCrequirements. The HI-8585 has 37.5 ohms in series with each line driver output. The HI-8586 pr ovides the option to bypass most of the output resistance so that series protection circuits canadd their resistances.

The HI-8585 or the HI-8586 along with the HI-8588 line receiver offer the smallest options available to get on and off theARINCbus.
