HI-8582

Features:

·ARINC specification 429 compatible
·Dual receiver and transmitter interface
·Analog line driver and receivers connect directly to ARINC bus
·Programmable label recognition
·On-chip 16 label memory for each receiver
·32 x 32 FIFOs each receiver and transmitter
·Industrial & full military temperature ranges transmitter and each receiver
·Status register
·Data scramble control
·32nd transmit bit can be data or parity
·Self test mode
·Low power
·Independent data rate selection for

Application

·Avionics data communication
·Serial to parallel conversion
·Parallel to serial conversion

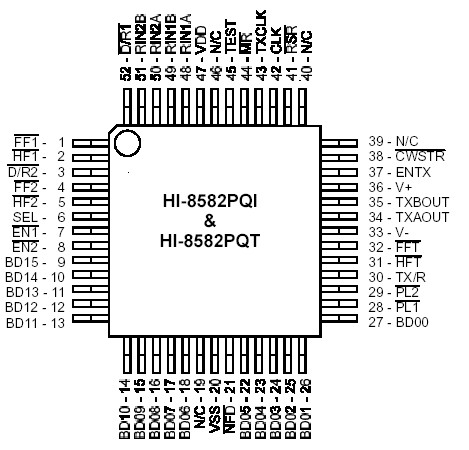

Pinout




Specifications

Supply Voltages V ....................... -0.3V to +7V V+ ....................................... +13.0V V- .......................................... -13.0V DD	Power Dissipation at 25 Plastic Quad Flat Pack ..........1.5 W, derate 10mW/ Ceramic J-LEAD CERQUAD ..... 1.0 W, derate 7mW/
Voltage at pins RIN1A, RIN1B, RIN2A, RIN2B ..... -29V to +29V	DC Current Drain per pin................................. ±10mA
Voltage at any other pin ............................... -0.3V to VDD +0.3V	Storage Temperature Range ........................ -65 to +150
Solder temperature (Leads) .................... 280 for 10 seconds (Package) .......................................... 220	Operating Temperature Range (Industrial): .... -40 to +85 (Military): ..... -55 to +125

Description

The HI-8582 from Holt Integrated Circuits is a silicon gate CMOS device for interfacing a 16-bit parallel data bus directly to the ARINC 429 serial bus. The HI-8582 design offers many enhancements to the industry standard HI- 8282 architecture. The device provides two receivers each with label recognition, 32 by 32 FIFO, and analog line receiver. Up to 16 labels may be programmed for each receiver. The independent transmitter has a 32 by 32 FIFO and a built-in line driver. The status of all three FIFOs can be monitored using the external status pins, or by polling the HI-8582's status register. Other new features include a programmable option of data or parity in the 32nd bit, and the ability to unscramble the 32 bit word. Also, versions are available with different values of input resistance and output resistance to allowusers to more easily add external lightning protection circuitry. The device can be used at nonstandard data rates when an option pin, NFD , is invoked.

The HI-8582 16-bit parallel data bus exchanges the 32-bit ARINC data word in two steps when either loading the transmitter or interrogating the receivers. The databus, and all control signalsare CMOS and TTL compatible.

The HI-8582 applies the ARINC protocol to the receivers and transmitter. Timing is based on a 1 Megahertz clock. Although the line driver shares a common substrate with the receivers, the design of the physical isolation does not allow parasitic cross talk, and thereby achieves the same isolationas common hybrid layouts.
