Features: Direct ARINC 429 quad or octal line receivers in small footprint packages3.3V or 5.0V single supply operationTest inputs bypass analog inputs and force digital outputs to a one, zero, or null stateARINC inputs are internally lightning protected per DO- 160C/D level 3 (-10 configuration o...
HI-8448: Features: Direct ARINC 429 quad or octal line receivers in small footprint packages3.3V or 5.0V single supply operationTest inputs bypass analog inputs and force digital outputs to a one, zero, or n...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionHI-8010J-85 is a 32 segment high voltage display driver constructed of MOS P Channel an...
Supply voltage(VDD) | -0.3 V to +7 V |
Logic input voltage range | -0.3 V to +5.5 V |
ARINC input voltage | -30 V to + 30 V |
Driver peak output current | +1.0 A |
Power dissipation at 25°C | 350 mW |
Solder Temperature | 275°C for 10 sec |
Storage Temperature | -65°C to +150°C |

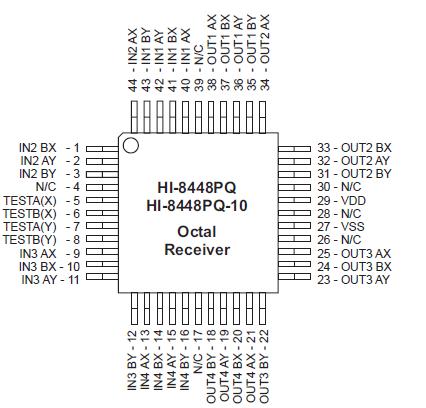

The HI-8444 and HI-8445 are quad ARINC 429 line receiver ICs available in a 20-pin TSSOP package. The HI- 8448 contains 8 independent ARINC 429 line receivers.
The technology of HI-8444 and HI-8445 is analog / digital CMOS. The device is designed to operate from either a 5V or 3.3V supply. Each receiver channel translates incoming ARINC 429 data bus signals to a pair of TTL/CMOSoutputs.
The optional HI-8444-10, HI-8445-10 and HI-8448-10 are designed to be used with an external 10 Kohm series resistor. The "-10" devices meet the lightning protection requirements of DO-160C/D level 3, waveforms 3, 4, and 5A. The TESTAand TESTB inputs bypass the analog inputs for testing purposes. HI-8444 and HI-8445 force the receiver outputs to the specified ZERO, ONE or NULL state. The ARINC inputs are ignored when the device is in the test mode. The HI-8445 is identical to the HI-8444 except the TESTA andTESTB pins are not available.
