HI-8422

Features: ·8 independent 28 Volt / Open sensing channels·8 independent Open / Ground sensing channels·5.0 Vsingle supply operation·Low powerCMOStechnology·Sense inputs are internally lightning protected per·DO-160D level 3·Military processing options availablePinoutSpecifications Supply volta...

product image

HI-8422 Picture
See larger image
SeekIC No. : 004362533 Detail

HI-8422: Features: ·8 independent 28 Volt / Open sensing channels·8 independent Open / Ground sensing channels·5.0 Vsingle supply operation·Low powerCMOStechnology·Sense inputs are internally lightning prote...

HI-8422 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI-8422
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·8 independent 28 Volt / Open sensing channels
·8 independent Open / Ground sensing channels
·5.0 Vsingle supply operation
·Low powerCMOStechnology
·Sense inputs are internally lightning protected per
·DO-160D level 3
·Military processing options available

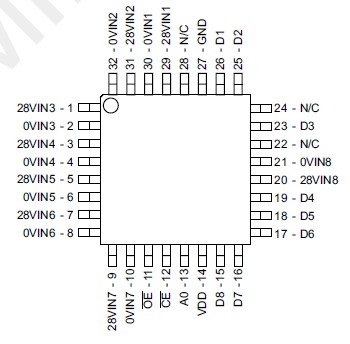

Pinout

Connection Diagram


Specifications

Supply voltage (VDD)
Logic input voltage range
Power dissipation at 25°C
Solder Temperature
Storage Temperature
Discrete input voltage range		 275°C for 10 sec
-65°C to +150°C
-0.3 V to +7 V
350 mW
-0.3 V to +5.5 V
-80 V to + 80 V

NOTE: Stresses above absolute maximum ratings or outside recommended operating conditions may cause permanent damage to the device. These are stress ratings only. Operation at the limits is not recommended.




Description

The HI-8422 is a sixteen channel discrete-to-digital interface device. The device has eight channels designed to sense 28 V / Open signals and eight channels that sense Open / Ground signals. Data is multiplexed from each bank of sensors to an eight bit digital databus. Mixed-signal CMOS technology is used to provide superior low-power performance. The device outputs are CMOS / TTL compatible and may be disabled (tri-state) using the CE and OE pins.

The HI-8422 is offered in a small footprint 32-pin Plastic Quad Flat Package (PQFP). Please contact the Holt sales department for other packaging options.
