HI-8105

Features:

·1V TO 5V Low Power Operation
·5MHz Operation
·30MHz division at 5V
·5MHz division at 1v
·8 Pin SOIC package


Application

The HI-8105 oscillator frequency is set by selecting a resistor and capacitor to apply at pin 8. Typical parameters at roomtemperatureare:

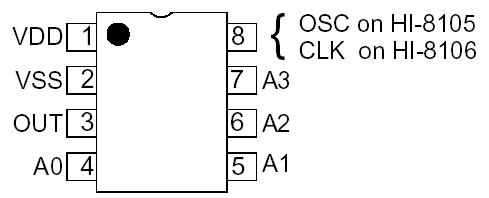

Pinout




Specifications

Supply voltages VCC................................7V
DC current per input pin.................. ±10mA
Power dissipation at 25°C..............500mW
Solder Temperature ........275°C for 10 sec
Storage Temperature.....-65°C to +150°C


Description

The HI-8105 & HI-8106 are silicon gate CMOS devices designed for 'glue' logic applications. They are simple 16 stage dividers with programmable division. The HI-8105 has a one pin oscillator while the HI-8106 receives a clock input. The one pin oscillator frequency is set by a resistor toVDDandthecapacitancetoACgroundat thepin.

The wafer processing enables operation to 1 volt guaranteed. The  HI-8105 & HI-8106  is designed for lowpower performance. As a result the maximumoutput frequency is 5 MHz while the internal logic will runconsiderablyhigher.Acompanion version, HI-8107, features a crys tal oscillator circuit anda8stageprogrammabledivider.
