HI-8040

Features: ·4 MHz serial input data rate·85 segment outputs·Cascadable·5 Volt inputs translated to 35 Volts·est pins allow hardware all ON , all OFF or alternating·Monitors backplane oscillation and forces all segments to OFF condition if below 10Hz·Negative voltage converter available on-chip...

product image

HI-8040 Picture
See larger image
SeekIC No. : 004362492 Detail

HI-8040: Features: ·4 MHz serial input data rate·85 segment outputs·Cascadable·5 Volt inputs translated to 35 Volts·est pins allow hardware all ON , all OFF or alternating·Monitors backplane oscillation a...

HI-8040 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI-8040
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·4 MHz serial input data rate
·85 segment outputs
·Cascadable
·5 Volt inputs translated to 35 Volts
·est pins allow hardware all "ON", all "OFF" or alternating
·Monitors backplane oscillation and forces all segments to "OFF" condition if below 10Hz
·Negative voltage converter available on-chip
·CMOS low power
·Military processing available



Application

·Dichroic Liquid Crystal Displays
·Standard Liquid Crystal Displays


Pinout

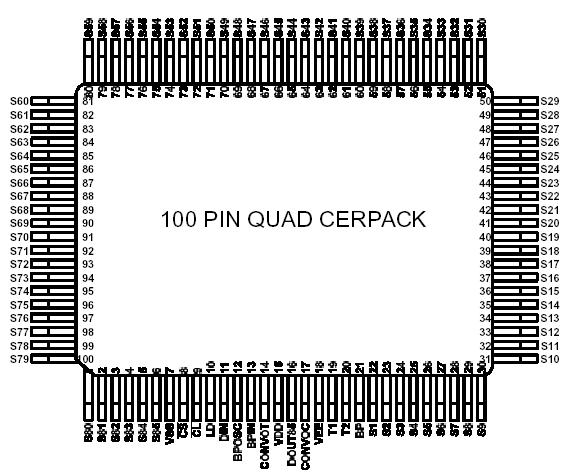

Connection Diagram


Specifications

Supply Voltage VDD.......................................................................0V to 7V
Supply Voltage VEE...............................................................VDD-35V to 0V
Voltage at any input, except BPIN...................................-0.3 to VDD+0.3V
Voltage at BPIN input.................................................VDD-35 to VDD+0.3V
DC Current any input pin..................................................................10 mA
Power Dissipation..........................................................................300 mW
Operating Temperature Range - Hi-Temp/Mil...................-55° to +125°C
Storage Temperature Range............................................-65° to +150°C
Operating Temperature Range - Industrial...... .................-40° to +85°C



Description

The HI-8040 is a CMOS integrated circuit designed for high voltage LCD display drive applications. HI-8040 can drive 85 segments at voltages between +5and -30 volts. An optional negative converter can generate the negative display drive voltage. Test inputs facilitate opens and shorts testing. The backplane frequency is checked and, as long as power is available, the segments are shut "Off" if the frequency becomestoolow.

The HI-8040 is part of a family of display drivers which control segment information in the same way. Data is serially clocked into the device and the data for all segment out puts are latched in parallel when the Load input transitions fromhigh to low. With the Data Out fromthe shift register available, devices may be cascaded to obtain more segment outputs. Theshift register is85bitslong.
The die is metal mask programmable to provide for various package and/or cascade tap options. Consult your Holt  Sales representativetoexplorethepossibilities.
