HI-7152

Features: • Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5µs• Continuous Throughput Rate. . . . . . . . . . . . . . . 200kHz• No Offset or Gain Adjustments Necessary• Internal Track and Hold Amplifier• Analog and Reference Inputs Fully...

product image

HI-7152 Picture
See larger image
SeekIC No. : 004362473 Detail

HI-7152: Features: • Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5µs• Continuous Throughput Rate. . . . . . . . . . . . . . . 200kHz• No Offset or Gain Adj...

HI-7152 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI-7152
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5µs
• Continuous Throughput Rate. . . . . . . . . . . . . . . 200kHz
• No Offset or Gain Adjustments Necessary
• Internal Track and Hold Amplifier
• Analog and Reference Inputs Fully Buffered
• µP Compatible Byte Organized Outputs
• Low Power Consumption . . . . . . . . . . . . . . . . . .150mW
• Uses a Single 2.5V Reference for ±2.5 V Input Range


Application

• µP Controlled Data Acquisition Systems
• DSP
- Avionics
- Sonar
• Process Control
- Automotive Transducer Sensing
- Industrial
• Robotics
• Digital Communications
• Image Processing


Pinout

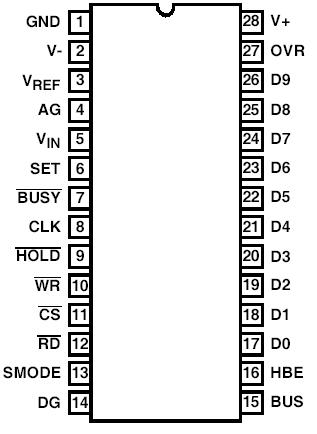

Connection Diagram


Specifications

Supply Voltage
V+ to Gnd (DG/AG/GND) . . . . . . . . . . . . . . . . -0.3V < V+ < +5.7V
V- to Gnd (DG/AG/GND). . . . . . . . . . . . . . . . .  -5.7V < V- < +0.3V
Analog Input Pins . . . . . . . . . . . . . . .V- -0.3V < VINA < V+ +0.3V
Digital I/O Pins . . . . . . . . . . . . . . . .DG - 0.3V < VI/O < V+ +0.3V
Power Dissipation (Note 2). . . . . . . . . . . . . . . . . . . . .. <500mW


Description

The Intersil HI-7152 is a high speed 10-bit A/D converter which uses a Two-Step, Flash algorithm to achieve throughput rates of 200kHz. A unique switched capacitor technique allows a new input voltage to be sampled while a conversion is taking place.

Internal high speed CMOS buffers at both the analog and reference inputs simplify external drive requirements. A Track and Hold amplifier is included on the chip, consisting of two high speed amplifiers and an internal hold capacitor. Microprocessor bus interfacing is simplified by the use of standard Chip Select, Read, and Write control signals. The digital three-state outputs of HI-7152 are byte organized for interfacing the either 8-bit or 16-bit systems. An out-of-range pin, together with the MSB, can be used to indicate an underrange or over-range condition.

The HI-7152 operates with ±5V supplies. A single +2.5V reference is required to provide a bipolar input range from -2.5V to +2.5V.
