HI-516

Features:

• Access Time (Typical) . . . . . . . . . . . . . . . . . . . . . . . 130ns
• Settling Time . . . . . . . . . . . . . . . . . . . . . . . . 250ns (0.1%)
• Low Leakage (Typical)
- IS(OFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10pA
- ID(OFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30pA
• Low Capacitance (Max)
- CS(OFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10pF
- CD(OFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25pF
• Off Isolation at 500kHz . . . . . . . . . . . . . . . . . . 55dB (Min)
• Low Charge Injection Error . . . . . . . . . . . . . . . . . . . 20mV
• Single Ended to Differential Selectable (SDS)
• Logic Level Selectable (LLS)




Application

• Data Acquisition Systems
• Precision Instrumentation
• Industrial Control

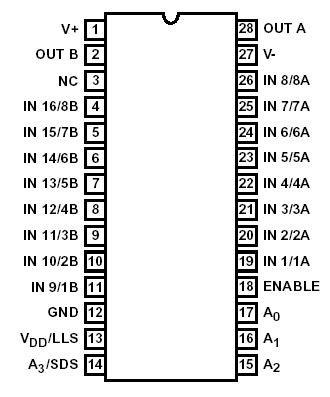

Pinout






Specifications

V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33V
Analog Signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (VIN,VOUT)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (V-) -2V to (V+) +2V
Digital Input Voltage:
TTL Levels Selected (VDD/LLS Pin = GND or Open)
VA0-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -6V to +6V
VA3/SDS . . . . . . . . . . . . . . . . . . . . . . . . . . . (V-) -2V to (V+) +2V
CMOS Levels Selected (VDD/LLS Pin = VDD)
VA0-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -2V to (V+) +2V




Description

The Hl-516 is a monolithic, dielectrically isolated, highspeed, high-performance CMOS analog multiplexer. It offers unique built-in channel selection decoding plus an inhibit input for disabling all channels. The dual function of address input A3 enables the Hl-516 to be user programmed either as a single ended 16-Channel multiplexer by connecting 'out A' to 'out B' and using A3 as a digital address input, or as an 8-Channel differential multiplexer by connecting A3 to the V- supply. The substrate leakages and parasitic capacitances are reduced substantially by using the Intersil Dielectric Isolation process to achieve optimum performance in both high and low level signal applications. The low output leakage current (lD(OFF) < 100pA at 25oC) and fast settling (tSETTLE = 800ns to 0.01%) characteristics of the device make HI-516 an ideal choice for high speed data acquisition systems, precision instrumentation, and industrial process control. For MIL-STD-883 compliant parts, request the Hl-516/883 data sheet.
