HI-506

Features:

• Low ON Resistance . . . . . . . . . . . . . . . . . . . . . . . . . 180W
• Wide Analog Signal Range . . . . . . . . . . . . . . . . . . . . . ±15V
• TTL/CMOS Compatible
• Access Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250ns
• Maximum Power Supply . . . . . . . . . . . . . . . . . . . . . . . .44V
• Break-Before-Make Switching
• No Latch-Up
• Replaces DG506A/DG506AA and DG507A/DG507AA
• Replaces DG508A/DG508AA and DG509A/DG509AA




Application

• Data Acquisition Systems
• Precision Instrumentation
• Demultiplexing
• Selector Switch

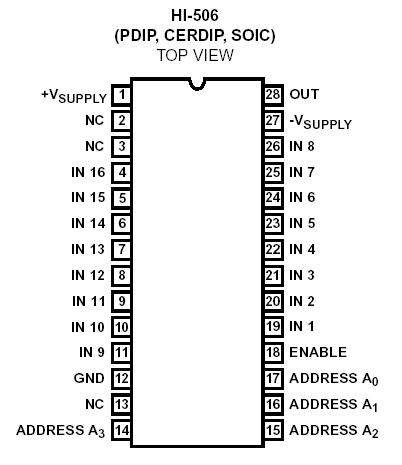

Pinout






Specifications

V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +44V
V+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +22V
V- to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -25V
Digital Input Voltage (VEN, VA) . . . . (V-) -4V to (V+) +4V or 20mA,
Whichever Occurs First
Analog Signal (VIN, VOUT, Note 2) . . . . . .. . . (V-) -2V to (V+) +2V
Continuous Current, In or Out . . . . . . . . . . . . . . . . . . . . . . . 20mA
Peak Current, In or Out (Pulsed 1ms, 10% Duty Cycle Max) . 40mA




Description

The HI-506/HI-507 and HI-508/HI-509 monolithic CMOS multiplexers each include an array of sixteen and eight analog switches respectively, a digital decoder circuit for channel selection, voltage reference for logic thresholds, and an enable input for device selection when several multiplexers are present. The Dielectric Isolation (DI) process used in fabrication of these devices eliminates the problem of latchup. DI also offers much lower substrate leakage and parasitic capacitance than conventional junction isolated CMOS (see Application Note AN520). The switching threshold for each digital input is established by an internal +5V reference, providing a guaranteed minimum 2.4V for logic 1 and maximum 0.8V for logic 0. HI-506/HI-507 and HI-508/HI-509 allow direct interface without pullup resistors to signals from most logic families: CMOS, TTL, DTL and some PMOS. For protection against transient overvoltage, the digital inputs include a series 200 resistor and diode clamp to each supply. The HI-506 is a single 16-channel, the HI-507 is an 8-channel differential, the HI-508 is a single 8-channel and the HI-509 is a 4-channel differential multiplexer. If input overvoltages are present, the HI-506/HI-507 and HI-508/HI-509 multiplexers are recommended.
