HI-222

Features:

• Wideband Operation . . . . . . . . . . . . . . . . . . . . . 200MHz
• Differential Gain . . . . . . . . . . . . . . . . . . . . . . . . . . 0.03%
• Differential Phase . . . . . . . . . . . . . . . . . . 0.003 Degrees
• Switching Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 100ns
• rON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35W
• Off Isolation at 10MHz . . . . . . . . . . . . . . . . . . . . . -65dB
• Crosstalk at 10MHz . . . . . . . . . . . . . . . . . . . . . . . . -80dB


Application

• Routing Switchers
• Production Mixers
• High Definition TV
• Radar Signal Conditioning
• Medical Imaging
• Heads-Up Displays
• Simulators
• Sonar

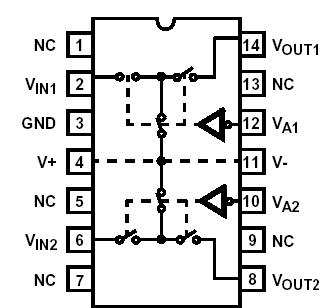

Pinout




Specifications

Supply Voltage (V+ to V-) (Terminals). . . . . . . . . . . . . . . . .. . . 36V
±VS to Ground (V+ to V-) . . . . . . . . . . . . . . . . . . . . . . . .. . . ±18V
Digital Analog Input Voltage (VA, VS, VD) . . . . . . . . . . . .±VS ±2V
IPEAK (S to D) (Pulse at 0.8ms, 10% Duty Cycle Max) . . . . 100mA
IPEAK (Any Pin, 50% Duty Cycle). . . . . . . . . . . . . . . . . . . . . .28mA
Continuous Current (Any Pin). . . . . . . . . . . . . . . . . . . . . .. . .15mA
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  <2000V


Description

The HI-222/883 is a high frequency analog switch that complements the Harris family of high speed op amps and buffers. Fabricated with our Dielectric Isolation process and using silicon gate technology, many key parameters have been enhanced.

Crosstalk and off isolation are optimized with a T-switch configuration and the use of nonconnected pins for extended shielding. Other features of the HI-222/883 include wideband operation, low rON, fast switching speeds and low differential gain and phase. The characteristics of this TTL compatible device make it ideal for designs where improved switching performance is required.

The primary application of this dual SPST switch is the routing of high frequency signals in equipment ranging from video production mixers to military RF circuits.For specifications on HI-222/883, refer to Harris Military Analog Data book.
