HHS40

Features:

• Open frame design with Insulated Metal Substrate
• Low profile 12.7 mm height
• Input/output isolation: 1500VDC, meets basic insulation requirements
• Efficiency in excess of 90%
• Output back-drive capability
• Low conducted and radiated EMI
• Output over-current protection
• Output over-voltage protection
• Over-temperature protection
• Remote sense
• Set point accuracy ± 2%
• Remote on/off (primary referenced), positive or negative logic
• Output voltage trim, positive or negative
• UL 1950 Recognition, CSA 22.2 No. 950-95 certification, TUV IEC950


Application

• Distributed power architectures
• Telecommunications equipment
• LAN/WAN applications
• Data processing applications

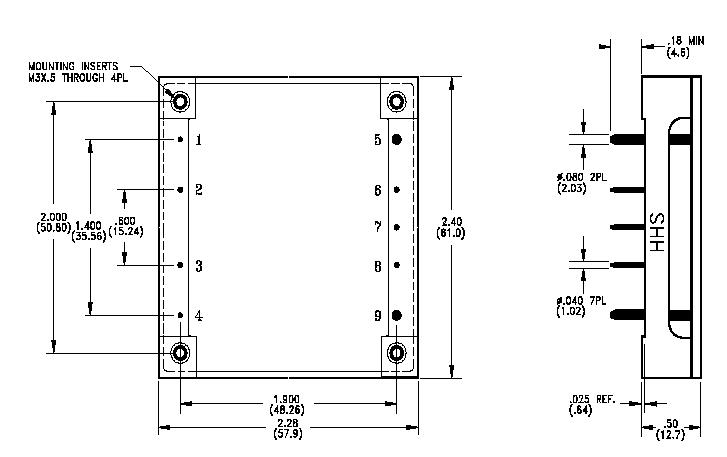

Pinout




Description

The HHS40 is a series of high-density Halfbrick size, High-current, Single-output DC/DC converters with through-hole mounting. The HHS40 provides on-board conversion of standard Telecom and Datacom input voltages to isolated, precisely regulated low output voltages. Very high efficiency and superior thermal design enable the products to deliver full rated power at 55° C with 300 LFM or 45° C with 200LFM forced air without addition of a heatsink. Such level of performance is presently not matched by other 40A rated products on the market.
