HHD25

Features: • 100/85 Watt total output power• Independently regulated outputs• Flexible load distribution• Open-frame design with Insulated Metal Substrate• Low profile 12.7mm height• High efficiency - 87%• Output voltage tracking• Output overcurrent ...

product image

HHD25 Picture
See larger image
SeekIC No. : 004362234 Detail

HHD25: Features: • 100/85 Watt total output power• Independently regulated outputs• Flexible load distribution• Open-frame design with Insulated Metal Substrate• Low profile ...

HHD25 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HHD25
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 100/85 Watt total output power
• Independently regulated outputs
• Flexible load distribution
• Open-frame design with Insulated Metal Substrate
• Low profile 12.7mm height
• High efficiency - 87%
• Output voltage tracking
• Output overcurrent protection
• Output overvoltage protection
• Overtemperature protection
• Setpoint accuracy ± 1.5%
• Independent output voltage trim, positive or negative
• Input/output isolation: 1500VDC, basic insulation
• UL 1950 Recognition, CSA 22.2 No. 950-95 certification, TUV IEC950


Application

• Distributed power architectures
• Telecommunications equipment
• LAN/WAN applications
• Data processing applications


Pinout

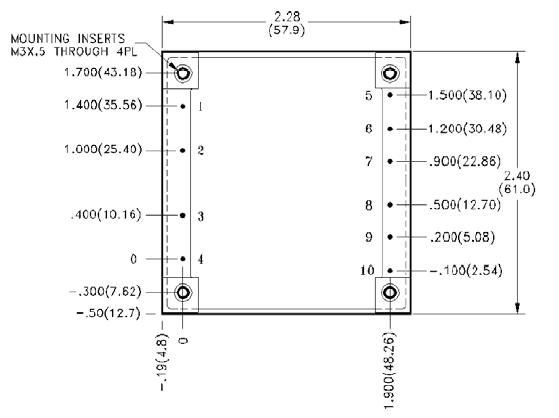

Connection Diagram


Description

The HHD25 is a new series of high density Halfbrick size, High current, Dual output DC/DC converters with through-hole mounting. The HHD25 provides onboard conversion of standard Telecom and Datacom input voltages to two independently-regulated output voltages. Leading-edge technology provides extremely high efficiency and superior thermal performance which enables the HHD25 to deliver full rated power at 55°C ambient temperature with only 200 LFM forced air without addition of a heatsink. The outputs also track each other during both startup and shutdown.
